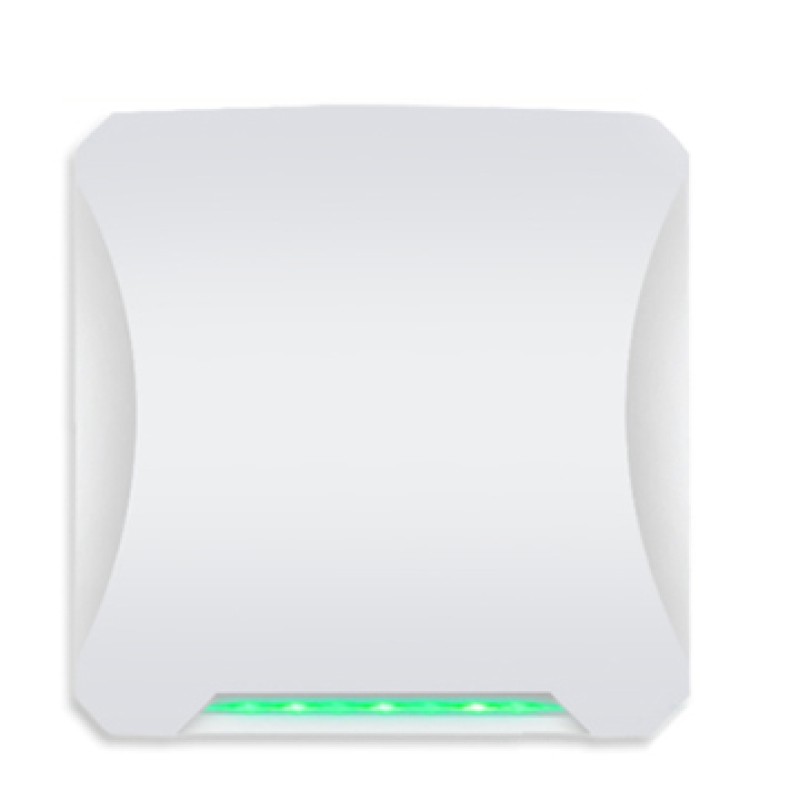

- CR15 is a compact fixed UHF RFID integrated reader designed for high‑performance identification in industrial and commercial environments.
- Operates reliably in harsh outdoor conditions with an IP66 waterproof housing, making it suitable for long‑term field installations.
- Ideal for logistics and warehousing, intelligent parking, weighbridge, toll, and automated production line applications requiring fast, accurate tag capture.
- Supports multi‑tag, multi‑region reading to streamline processes such as warehouse inventory, asset tracking, mail and parcel flow, and transport luggage management.
- Delivers low‑power yet stable reading performance, helping enterprises automate operations while reducing maintenance and operating costs.
- UHF fixed integrated reader compatible with ISO 18000‑6C / EPC Gen2 protocol, with >15 m identification distance and >500 tags group reading capability.
- Built-in 8 dBi circularly polarized antenna with adjustable RF power from 0–30 dBm for flexible on-site tuning.
- Multiple communication interfaces, including RS485, Wiegand 26/34, and optional RJ45, Wi‑Fi, and GPRS connectivity.
- Industrial‑grade design with IP66 protection, operating temperature from −20°C to +70°C, and low power consumption (<5 W).
- Supports automatic, trigger, and interactive working modes, with buzzer/LED indication and SDK (DLL + demo source code) for easy secondary development.
- Logistics and warehousing management: inbound/outbound tracking, warehouse inventory, and goods flow management.
- Intelligent parking and access control: parking lot entry/exit, charging automation, and vehicle identification.
- Asset and equipment tracking: fixed asset tracking in warehouses, yards, plants, and similar facilities.
- Production line management: fixed‑point identification on automated lines for process tracking and control.
- Weighbridge and toll systems: vehicle identification for weighbridge automation and toll tax collection.
Technical Specifications Table
|
Technical Specifications
|
| System parameters |
AFM7+E710 module (optional) |
| Operating frequency |
European standard (865~867 MHz), other multinational frequency standards (customized) |
| Identification distance |
>15 meters |
| Group reading performance |
>500 tags |
| Tag protocol |
Supports ISO18000-6C (EPC GEN2) protocol electronic tags |
| Frequency hopping mode |
Frequency hopping spectrum (FHSS), or fixed frequency, can be set by software |
| Working mode |
Automatic mode, trigger mode, interactive mode, etc. |
| RF power |
0-30 dBm (power software adjustable) |
| Antenna parameters |
8 dBi circularly polarized antenna (built-in) |
| Supported interface |
Standard RS485, Wiegand26, Wiegand34, optional RJ45, WIFI, GPRS, etc. |
| Working voltage |
12V/2A |
| Identification prompt |
Buzzer or LED Flash |
| Power consumption |
5W |
| Working temperature |
-20°C ~ +70°C (customization required if out of range) |
| Working humidity |
20% ~ 95% (no condensation) |
| Storage temperature |
-40°C~125°C |
| Dimensions |
180x180x60 mm / 265x185x70 mm |
| Net weight |
550G |
| Gross weight |
1100G |
| Secondary development |
Provide dynamic link library (DLL) and demonstration software source code to support secondary development. |
| Notes |
The recognition distance and group reading performance depend on the tag performance and specific application scenarios and can be customized as required. |
Fixed compact reader, compatible with the ISO 18000-6C standard, with an operating frequency of 902 MHz~928 MHz, an exquisite appearance, and outstanding reading and writing performance.
The reader can be widely used in warehousing logistics management, retail logistics center management, enterprise transportation management and automated production line management.
Logistics and warehousing management: flow and warehousing management of goods, as well as flow
management of mail, parcels, and transport luggage
Intelligent parking management: parking lot management and charging automation
Production line management: identification of fixed points in production processes
Product anti-counterfeiting detection: using the write protection function of the memory in the tag to identify the authenticity of the product
Low power, stable and reliable reading and writing distance
Fast data reading rate
Tag wake-up recognition
Multi-region multi-tag reading
Multi-protocol compatibility
Waterproof appearance design
IP66 waterproof grade, strong and durable.
