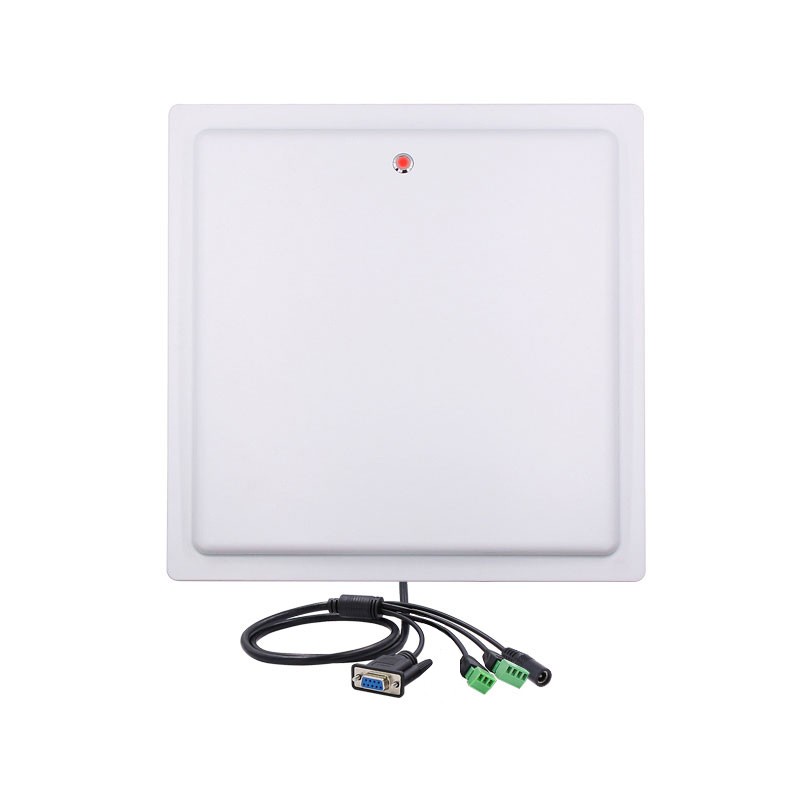

MORX CR32
UHF Solution
Long Range Reader with inbuilt Relay. Direct Connect with Boom Barrier and inbuilt Relay
- Built -in antenna: 12dbi Linear antenna
- Reading distance: 0~15m（depends on tag and work environment）
- Operating Voltage DC 12V/2A power adapter

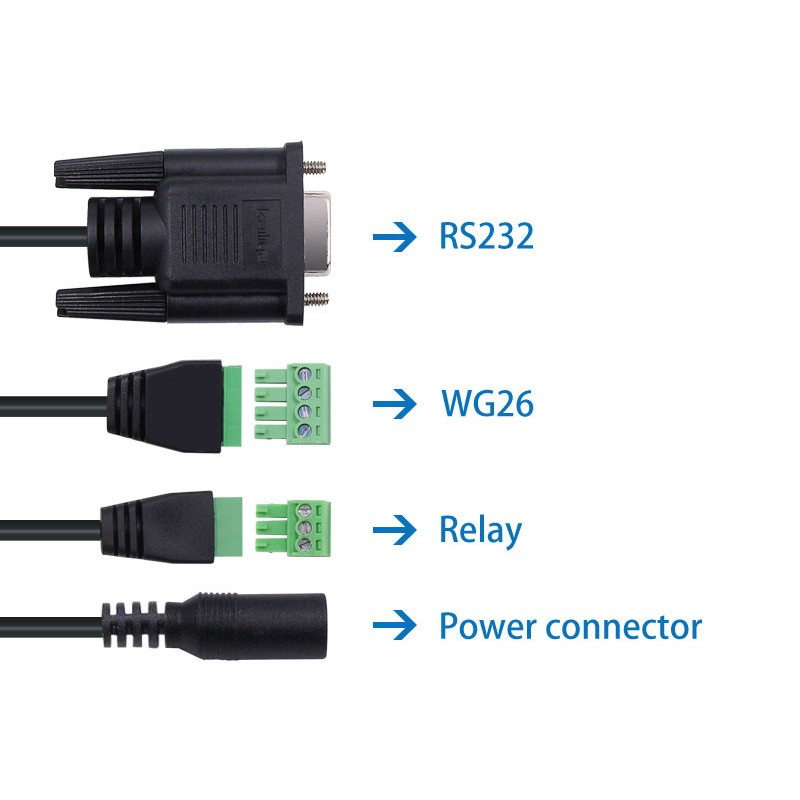

- Communication Interface Standard interface：RS232, WG26/WG34, Relay, Trigger
Asset Tracking
RFID
TCP IP
UHF
USB
Weighbridge
WIFI
Online Support 24/7
- Based on a proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate.
- RFG-CR32 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property.
- It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
- Self-intellectual property

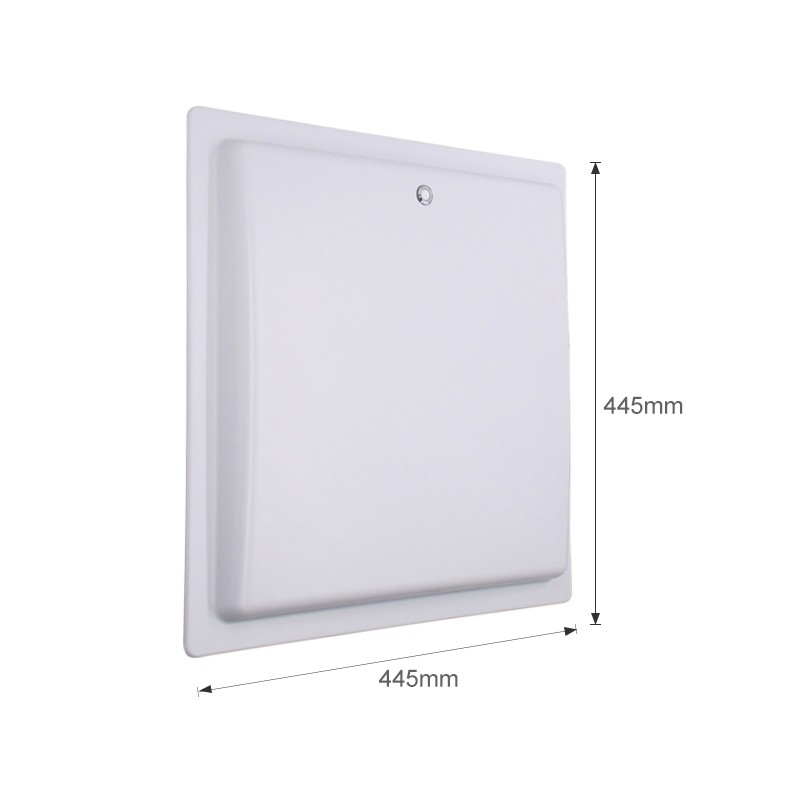

- Size:445mmx445mmx55mm
- Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag
- 865~868MHz, 902~928MHz frequency band(frequency customization optional)
- FHSS or Fix Frequency transmission
- RF output power up to 30dbm(adjustable)
- 12dbi antenna optional with effect distance up to 10m~20m*
- Support auto-running, interactive and trigger-activating work mode
- Low power dissipation with single +9 DC power supply
- Support RS232,USB,WG26,RELAY
- Logistics and supply chain management systems for tracking pallets, cartons, and assets over long gate or dock portals.
- Access control solutions for gates, yards, and secured areas where vehicles or personnel need hands‑free identification.
- Industrial production process control, linking work‑in‑process items to automated stations for tracking and traceability.
- Anti‑counterfeiting systems where tagged products are authenticated at checkpoints during distribution or entry.
- Long‑range RFID‑based vehicle and gate management for yards, parking lots, and campus entrances/exits, enabling automated access control and movement tracking.
| PHYSICAL CHARACTERISTICS | |
|---|---|
| Dimension | 445mmx445mmx55mm |
| Weight | 3.55kg |
| USER ENVIRONMENT | |
|---|---|
| Operating Temp. | -10~+55℃ |
| Storage Temp. | -20~+75℃ |
| CONNECTIVITY | |
|---|---|
| Communication | Rs232,USB,WG26,RELAY |
| Output | Wiegand |
| Power Supply | 9V DC |
| RFID UHF | |
|---|---|
| Frequency | 865~868MHz, 902~928MHz frequency band(frequency customization optional) |
| Protocol | ISO18000-6B, ISO18000-6C(EPC C1G2) |
| Read Range | 12m~15m (Depend On Tag) |
| Work Mode | Active Mode, Trigger Mode and Answer Mode(Optional) |
| Antenna Power | 12dbi Linear Antenna |
| Output Power | Up to 26dbm(adjustable) |
