MORX CR32L

MORX CR32L

MORX CR32L

UHF Solution

Morx

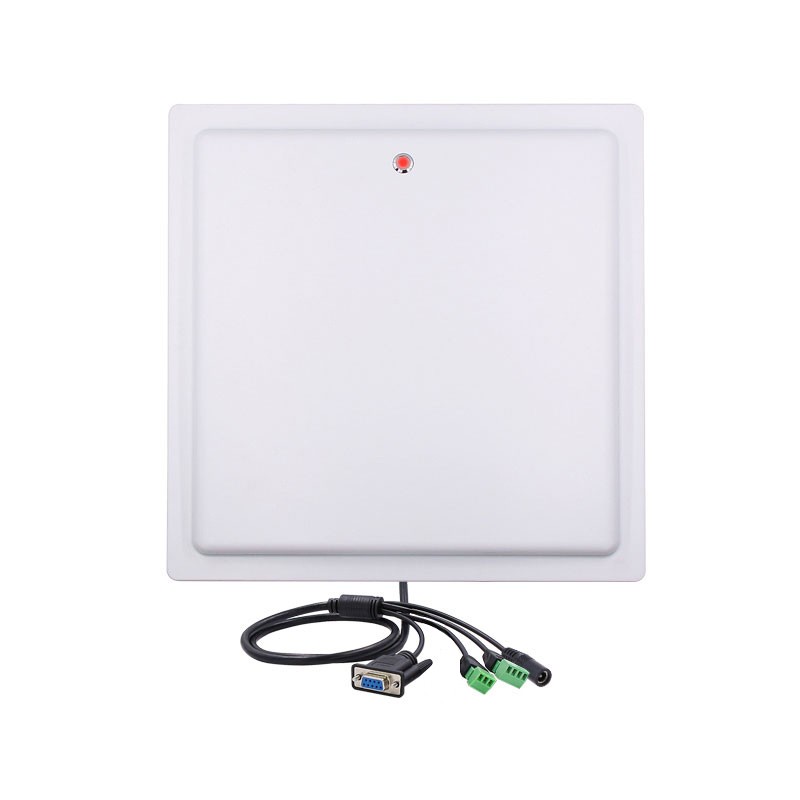

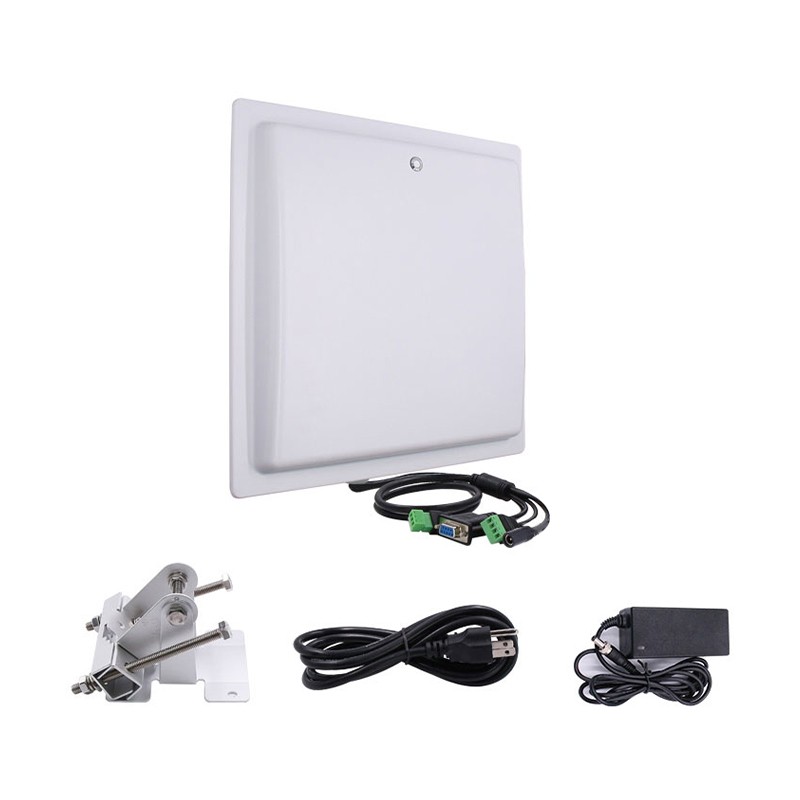

Integrated UHF Reader(15 Meter)

  • Built-in antenna: 12dbi Linear antenna
  • Communication Interface Standard interface：RS232, WG26/WG34, Relay, TCP/IP
  • Reading distance: 0~15m（depends on tag and work environment）
  • Operating Voltage DC 12V 2A power adapter
Asset Tracking

Asset Tracking

Inventory

Inventory

Parking

Parking

RFID

RFID

TCP IP

TCP IP

Toll Tax

Toll Tax

UHF

UHF

Warehouse

Warehouse

Online Support 24/7

Online Support 24/7

  • Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate.
    • RFG-CR32 L is a high performance UHF RFID integrated reader.
    • It is designed upon fully self-intellectual property.
    • It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
  • Self-intellectual property
  • Size:445mmx445mmx55mm
  • Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag
  • 865~868MHz, 902~928MHz
  • FHSS or Fix Frequency transmission
  • RF output power up to 30dbm(adjustable)
  • 12dbi antenna optional with effect distance up to 10m~20m*
  • Support auto-running, interactive and trigger-activating work mode
  • Low power dissipation with single +9 DC power supply
  • Support RS232, USB, Wiegand, TCP/IP interface
  • Long‑range vehicle and gate management for yards, parking lots, and campus entrances/exits, enabling automated access control and movement tracking.
  • Logistics and warehouse portals for pallet, carton, and asset identification over 10–20 m dock or gate lanes.
  • Industrial production process control, linking work‑in‑process items to fixed reading points on conveyor lines or stations.
  • Access control systems for secured facilities where hands‑free identification of people or assets is required.
  • Anti‑counterfeiting and authentication checkpoints where tagged products are validated during distribution or at critical control points.

PHYSICAL CHARACTERISTICS
Dimension 445mmx445mmx55mm
Weight 3.55kg
USER ENVIRONMENT
Operating Temp. -10~+55℃
Storage Temp. -20~+75℃
CONNECTIVITY

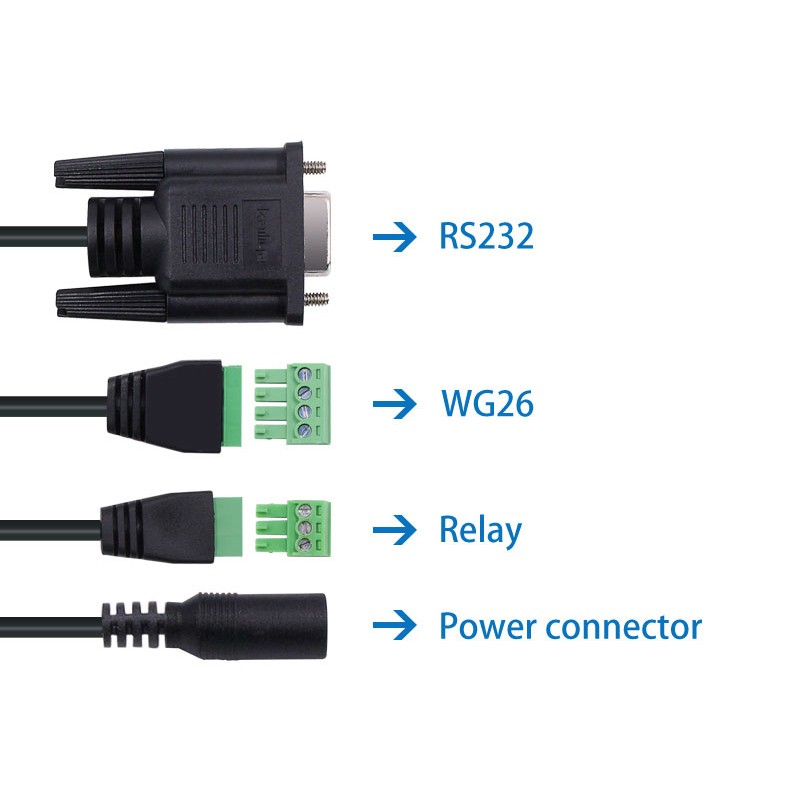

Communication Rs232, USB,WG26.RELAY,TCP/IP, LAN, WIFI (Optional)
Output Wiegand
Power Supply 9V DC
RFID UHF
Frequency 865~868MHz, 902~928MHz frequency band(frequency customization optional)
Protocol ISO18000-6B, ISO18000-6C(EPC C1G2)
Read Range 12m~15m (Depend On Tag)
Work Mode Active Mode, Trigger Mode and Answer Mode(Optional)
Antenna Power 12dbi Linear Antenna
Output Power Up to 30dbm(adjustable)
Gain(dBi) 12 Hor:40 Ver:40 ≥25 50
Half-power beam width(°) ≤1.3 -10 ~ +55oC -20 ~
Front-to-back ratio(dB) +75oC
Impedance(Ω)
VSWR
Operating Temp
Storage Temp

Downloads

Connection Diagram

Connection Diagram
