MORX CR33L

MORX CR33L

MORX CR33L

UHF Solution

Morx

Integrated UHF Reader(8 meter)

  • Built -in antenna: 9dbi circular antenna
  • Reading distance: 8~10M（depends on tag and work environment)
  • Operating Voltage DC 12V/2A power adapter
  • Communication Interface Standard interface：RS232, WG26/WG34, Relay, TCP/IP
  • No need to install the driver or configuration, it can be scanned & connected automatically
9 dBi Antenna

9 dBi Antenna

Password Mode

Password Mode

Poe

Poe

RFID

RFID

TCP IP

TCP IP

Toll Tax

Toll Tax

UHF

UHF

Online Support 24/7

Online Support 24/7

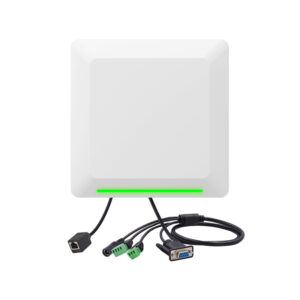

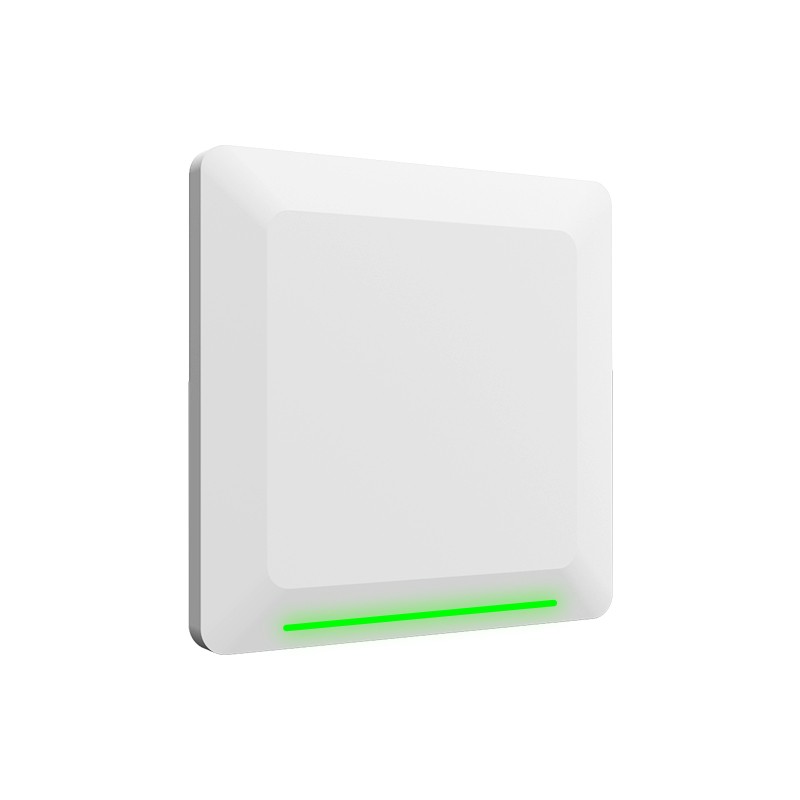

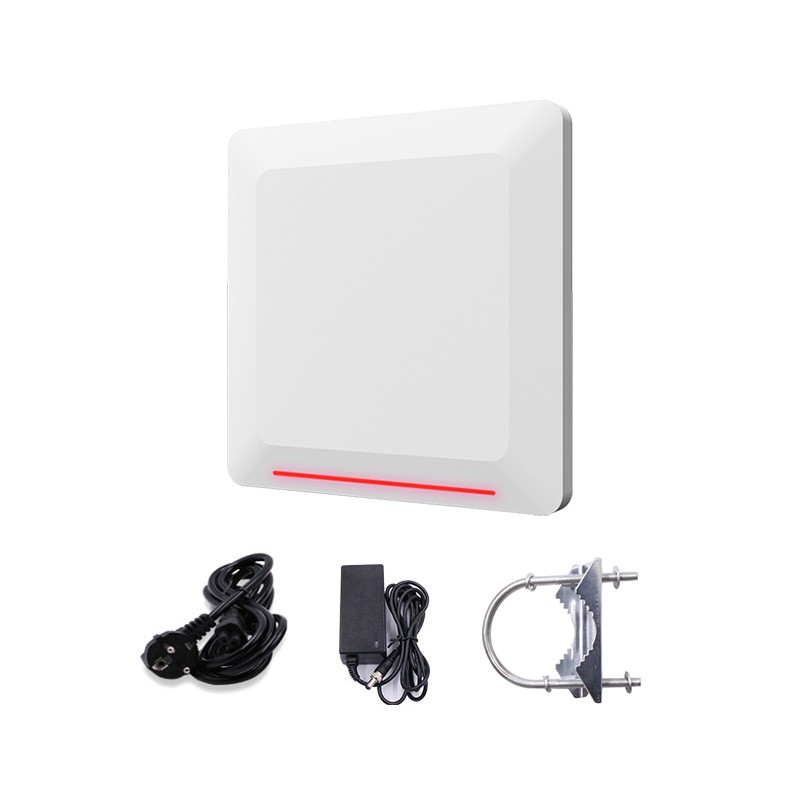

  • CR33L is a UHF integrated RFID reader designed for medium‑range fixed installations in access control, logistics, and industrial automation.
  • Provides stable 8–10 m read performance with a 9 dBi circular antenna and optimized RF design for portal and gate applications.
  • Supports intelligent features like password and mask modes to enhance data security and tag filtering in enterprise environments.
  • Designed for networked deployments with automatic scanning and connection of communication ports, simplifying installation and maintenance.
  • Suitable for scenarios where reliable, continuous tag reading and remote monitoring are required over IP networks.
  • Automatic scanning port/network
  • No need to install the driver or configuration, it can be scanned and connected automatically
  • Password mode
  • The device configures the EPC access password, which only allows reading the same password tag, high security
  • Mask mode
  • Device Configured the epc Mask, which only all allows reading the same mask tag, account matching
  • Relay
  • Relay can be used for power supply and communication to trigger external equipment work
  • RSSI
  • Reading TAG upload data will bring RSSI value, which can be used to refer to the calculation judgment distance
  • Data cache
  • The network drop data will be automatically cached after connecting again to avoid data loss
  • Remote monitoring
  • You only need to configure an IP address to monitor the receiving remote device to send data
  • Multiple languages development
  • Support C#, Delphi, Java, Python, VB and other language development
  • Networked access control for gates, barriers, and building entrances where secure, medium‑range RFID identification is required.
  • Parking and campus/yard management systems, enabling vehicle recognition at entry/exit lanes within 8–10 m.
  • Logistics and warehouse dock doors or shutter portals for pallet, carton, and asset identification on single or dual lanes.
  • Industrial automation and production line checkpoints where tagged items are read at fixed stations and events can be triggered via relay.
  • Secure asset and inventory management solutions that use password/mask modes and remote monitoring to control and audit tag reads across sites.
Specification
Model number CR 33L
Frequency 865-868MHz (EU standard),902-928MHz (US standard)
Protocol IS018000-6C(EPC GEN2)
Built-in antenna 9dbi circular antenna
Work mode Active/trigger/answer/password/mask mode
RF power 26dbm (adjustable)
Read distance 8-10 m (depends on tag)
Interface RS232ANG/Relay/TCP/IP/POE/USB/TTURS485ANIFI(optional)
Power supply 9-24V
Reader Size 305*305*75mm
Net weight 2kg
Package size 420*350*110mm
Package gross weight 3.5kg
Operating Temp -10~+55 °C
Storage Temp -20~+75 °C
Standard interface RS232/WG26/Relay
Optional interface TCP/IP/POE/WIFI
Customized interface USB/TTL/RS485
