MORX HA15
UHF Solution
9 Dbi Circular Antenna
- IP67 protection level, suitable for outdoor scenes

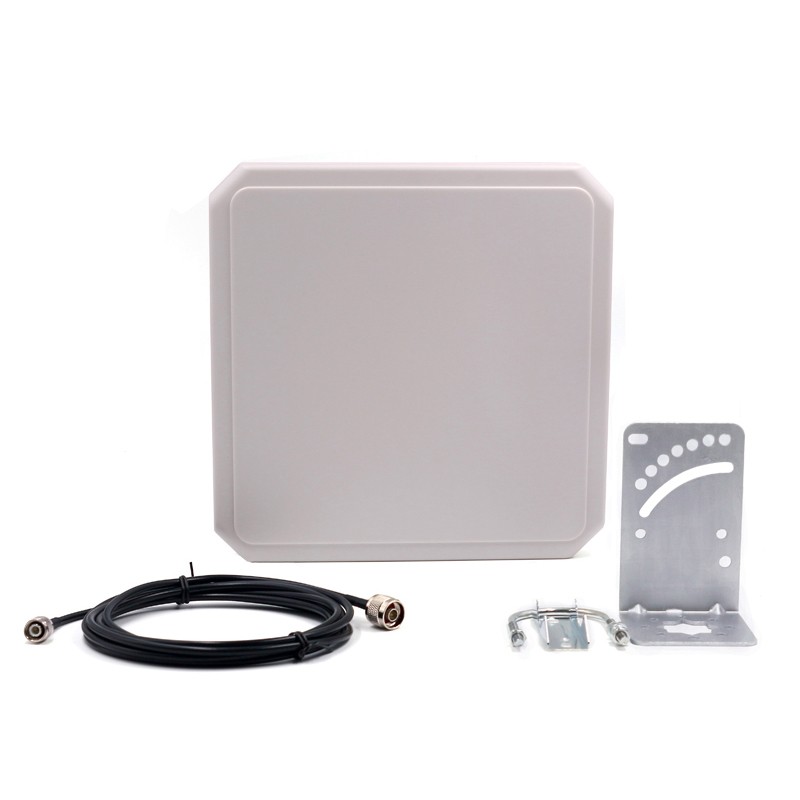

- Standard 3-meter feeder, RG58 (outer diameter 5.0) feeder
- 9Dbi Circular Antenna
Small size and high rugged housing, easy for installation with 9dbi power gain, RFG-HA15 is new designed long range UHF RFID antenna, suitable for RFG-HC04 series UHF RFID reader, widely used in warehouse, factory, retail store, parking lot etc.
- Powerful: Max RFID performance, reading distance up to 20m
- Advanced: Excellent multi-tag reading function, >400time each second
- Humanized: Small size, 6 hangers for easy installation
- Wide using: Best for long reading distance application such as warehousing, logistic, production, yard
Application : warehouse management, clothing management, animal management, logistics management, production management, smart cabinet management, etc.
| Specification | |
|---|---|
| Frequency | 840-960MHz adjustable |
| Gain | 9 dBi |
| “H”beam angle | 70° |
| “E” beam angle | 70° |
| Front-back | ≥20 dB |
| Polarization | Right Circular or Left Circular |
| Impedance | 50 (Ω) |
| VSWR | 1.3:1 |
| Maximum Input Power | 10W |

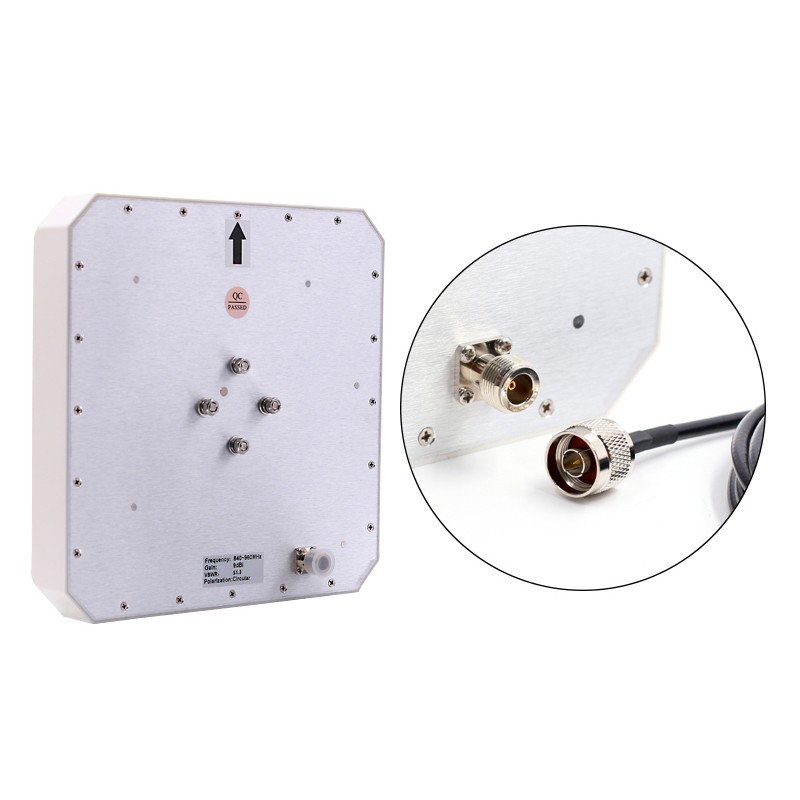

| Connector | SMA- 50KFD female or Customizable |
| IM.3rd Order(2x43dBm) | -- |
| Lightning Protection | DC to ground |
| Physical | |
|---|---|
| Size | 274mm×243.8mm×31.6mm |
| Weight | 600g |
| Housing Material | Aluminum + Engineering plastic ASA |
| Protection level | IP4X |
| Storage Temp. | -20~+75°C |
| Environment | |
|---|---|
| Working Temperature: | -30 - +70°C |
| Storage Temperature: | -40 - +85°C |
| Atmospheric Pressure: | 86kPa~108kPa |
| Relative Humidity: | 5%-95% RH no condensing |
