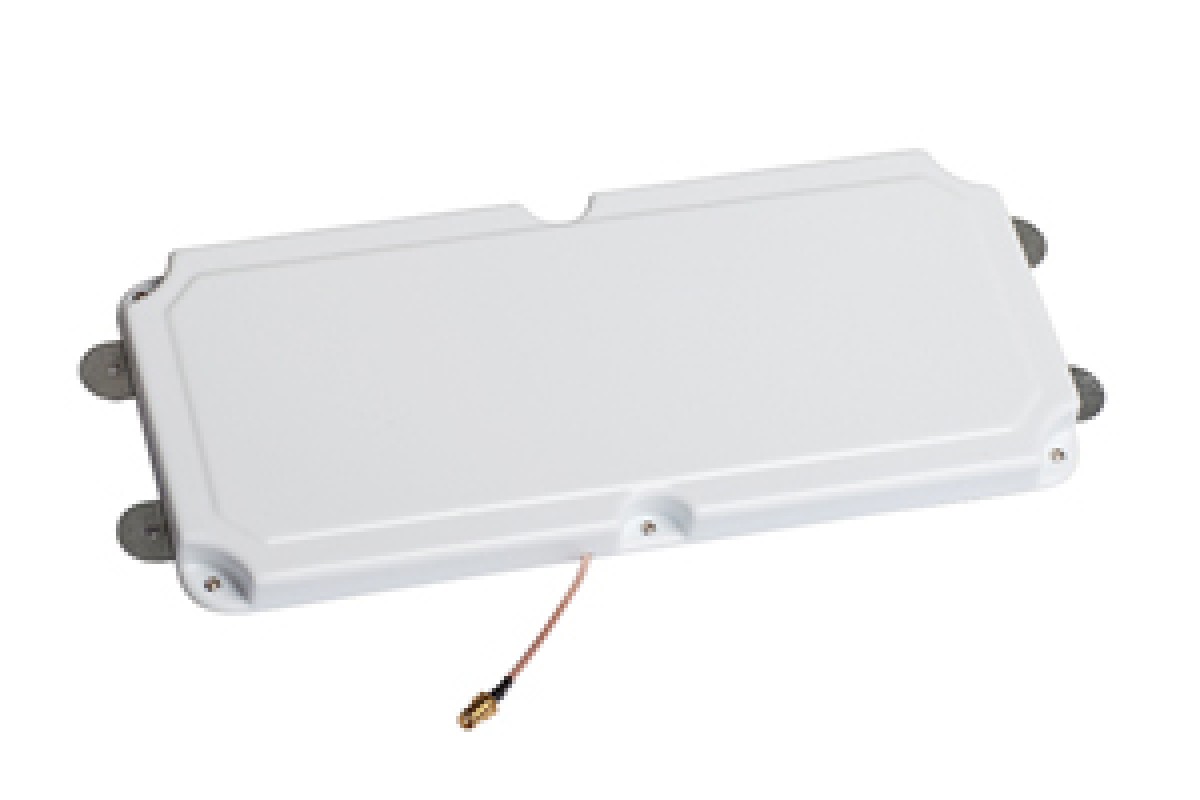

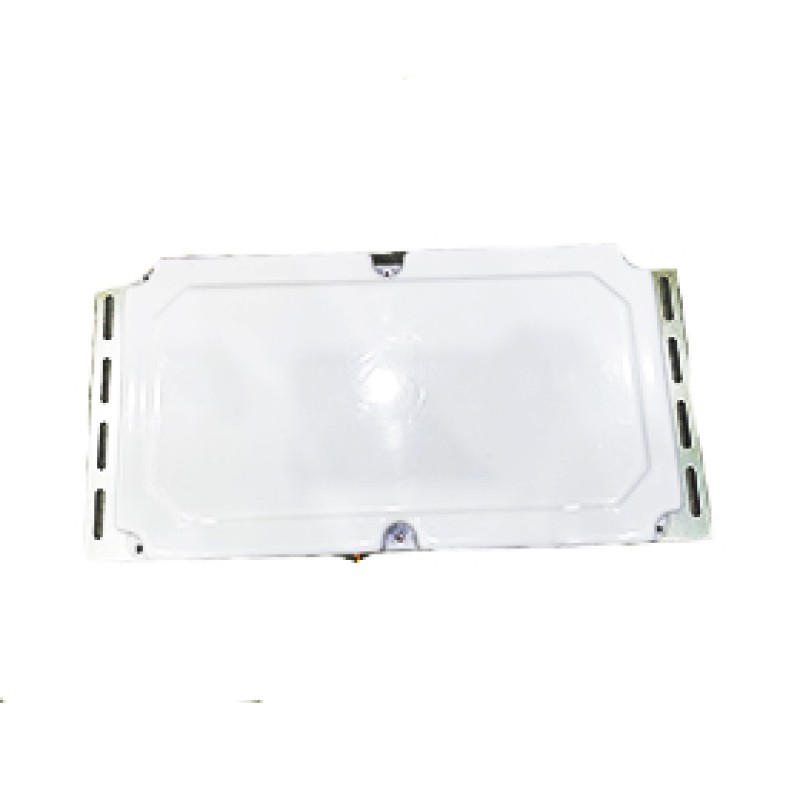

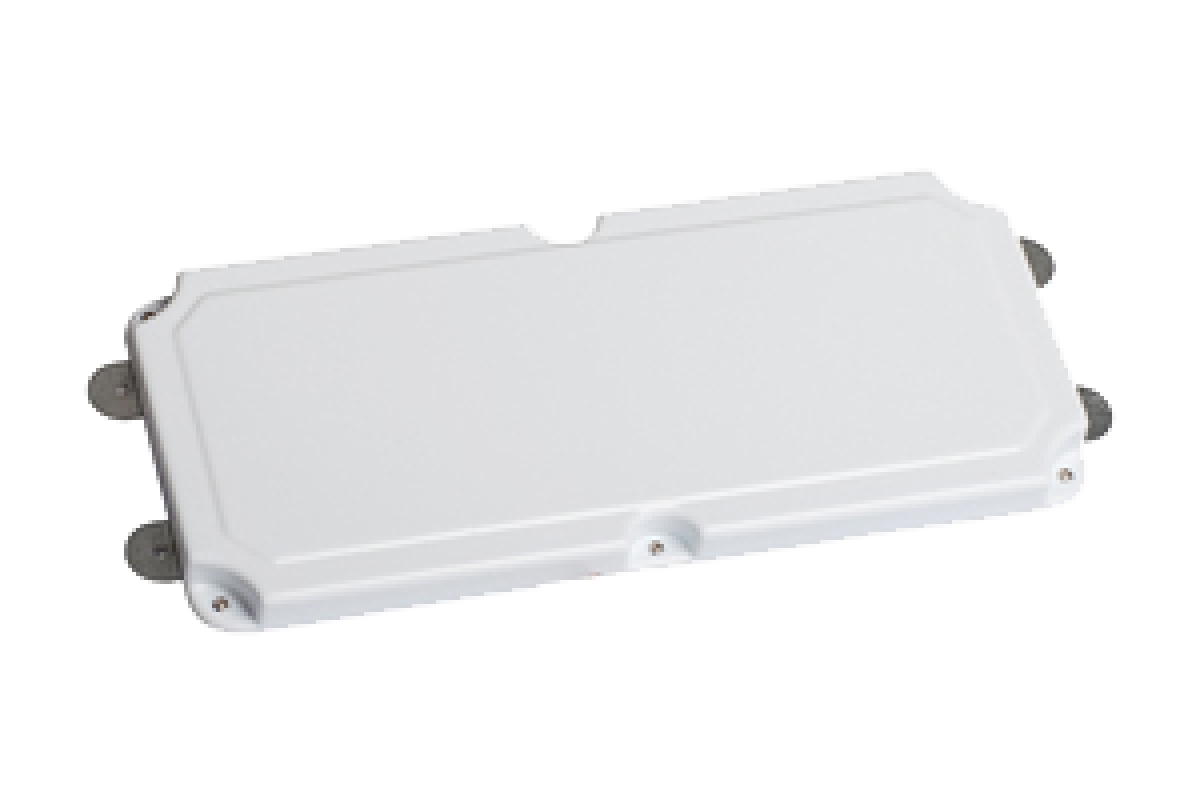

MORX Narrow Beam Antenna

MORX Narrow Beam Antenna

MORX Narrow Beam Antenna

UHF Solution

Morx

Vehicle Management Linear Polarization RFID Antenna

  • Near field directional identification antenna
  • Standard 1-meter feeder, RG316 feeder, line and machine integrated

RFID

RFID

UHF

UHF

Online Support 24/7

Online Support 24/7

  • Narrow beam antenna for access control gate reader, suitable for UHF band RFID antenna terminal general case, the directional narrow beam, high gain characteristics and Mechanical Properties: Suitable for all occasions, access control, fleet management and other users.
  • Low profile with high gain, reading distance range up to 20m
  • Maximum efficiency and performance across the entire frequency band
  • Seamlessly compatible with different brand RFID readers
Applications
  • warehouse management, clothing management, animal management, logistics management, channel access control, smart cabinet management, etc.
Physical Characteristics
Dimensions (L x W x D) 460 mm 220mmx35 mm
Weight 4.3KG
Random Material Aluminum +ABS
Sealing IP66
Connector type / position: SMA- male or Customizable
Mounting Flush
Operating Temperature -40- +85°C
Storage Temperature -40- +85°C
Electrical Specifications
Frequency Range 865MHz 868MHz, 902MHz ~ 928MHz
Polarization Narrow Beam Circular
Far-Field Gain 10 dBi
Typical VSWR VSWR≤1.3
Nominal Impedance 50 (2)
Maximum Input Power 10W
