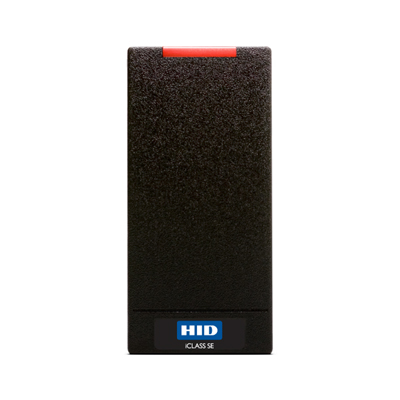

HID R10 Reader

$81.00 $101.00

Contactless Smart Card Reader

The iCLASS SE® readers are part of HID Global's iCLASS SE platform for adaptable, interoperable access control. These readers operate at 13.56 MHz frequency and support a wide variety of credentials as well as a range of form factors including cards fobs and mobile devices. The iCLASS SE readers feature standardised communications (open supervised device protocol - OSDP) for secure communications between reader and controller and also interoperable with an expanding range of technologies such as iCLASS SE, standard iCLASS®, iCLASS Seos®, MIFARE® Classic and MIFARE® DESFire EV1 and mobile credentials.

Adaptable : Now available with magnetic stripe, readers are also interoperable with a growing range of technologies (iCLASS® Seos™, iCLASS SE, standard iCLASS®, MIFARE®, and MIFARE DESFire® EV1 with custom data models) and form factors including mobile devices utilizing Seos.

Powerfully Secure : Provides layered security beyond the card media for added protection to identity data using the iCLASS SE platform’s Secure Identity Object® (SIO®) data model.

Field Programmable : For seamless and secure upgrades and extended lifecycle.

Standardized Communications (OSDP) : Open Supervised Device Protocol (OSDP) for secure, bidirectional communication.

Functionality
Housing Material UL94 Poly Carbonate
Mounting Mini-Mullion Size
Operating humidity 5% to 95% relative humidity non-condensing
Panel Connection Pigtail or Terminal Strip
Peak Current 240mA
Transmit Frequency 2.4GHZ, 13.56MHZ
Technicle Specification
Operating Temprature -13° to 150° F
Dimensions 1.9"*4.1"*0.9" 4.8cm*10.3cm*2.3cm
Capable Distance 4000ft
Operating Voltage Range 5-16 VDC
Standby AVG Current 82mA
Storage Temprature -67° to 185° F
Accessories
Colour Black
Misc.
Certification's Bluetooth SIG Certification, UL294/cUl (US), FCC certification (US), IC (Canada), CE(EU), RoHS
