What is a UHF Integrated Reader?

A UHF integrated reader is a self-contained RFID reading device that combines reader electronics and a built-in antenna in a single compact housing. Unlike separate reader and external antenna setups, integrated readers are easier to install, require less cabling, and are ideal for space-constrained or single-direction deployments. Operating in the 860–960 MHz UHF frequency band, these readers capture multiple RFID tags simultaneously from distances of 6 to 20+ metres — making them the standard hardware for vehicle identification, warehouse gate management, parking systems, and industrial access control across India.

Morx CR Series — Complete UHF Reader Range

Short to Mid Range (6–8 Metres)

MORX CR06 (6m, TCP/IP + Relay) and MORX CR33 (7m, RS232/Wiegand 26/34) are suited for pedestrian access control, small warehouse portals, indoor RFID tracking, and single-lane vehicle gates where compact size matters.

Long Range (10–15 Metres)

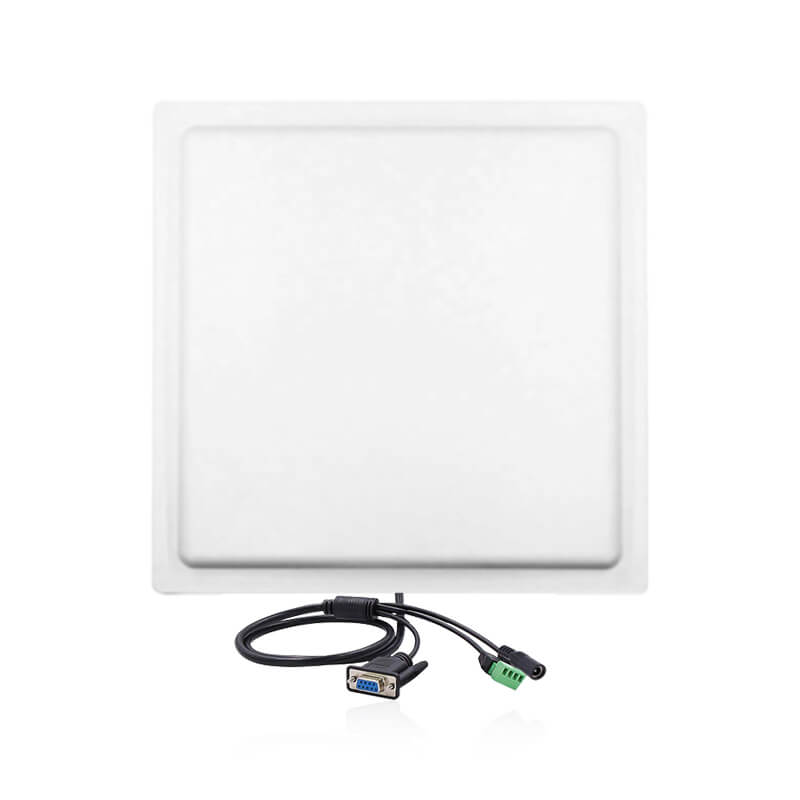

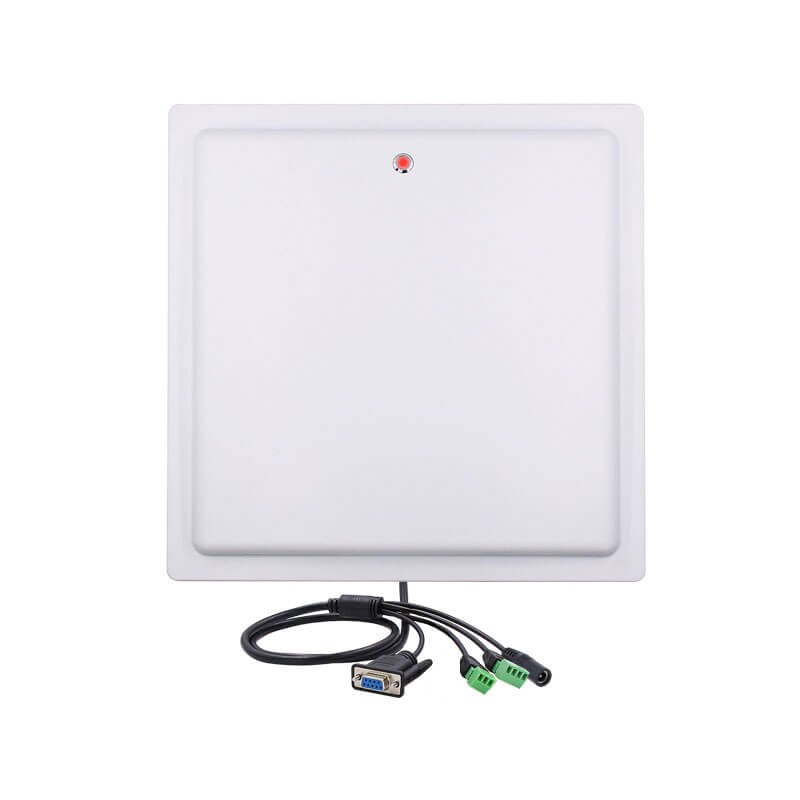

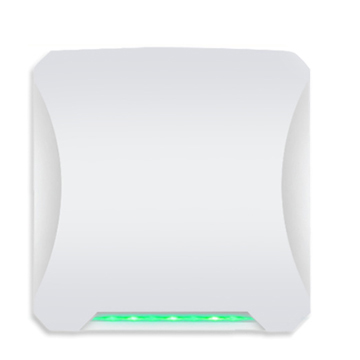

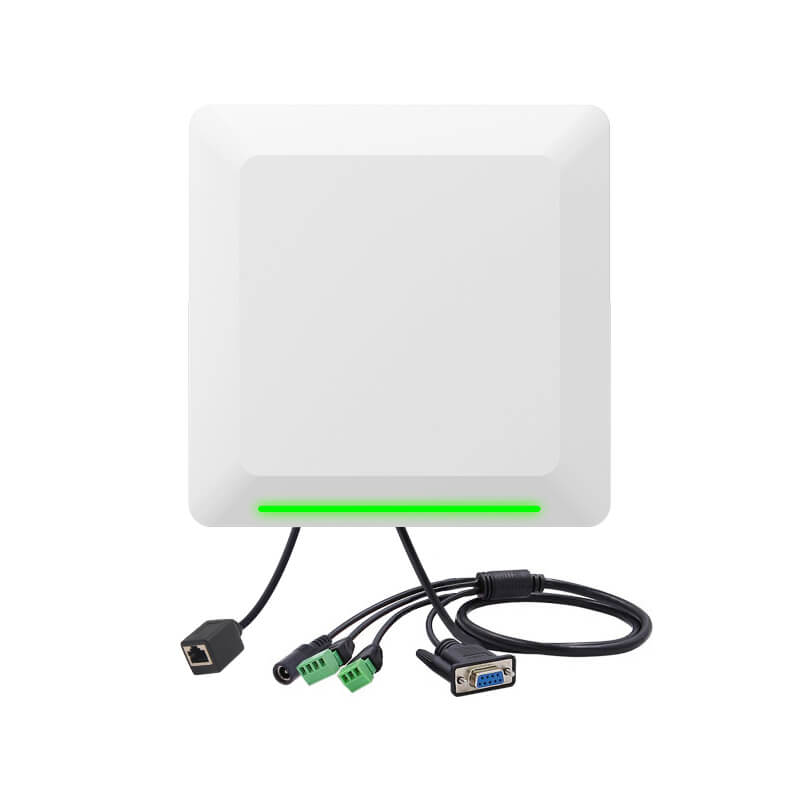

MORX CR15, MORX CR32, MORX CR32L, and MORX CR33L deliver 10–15m read range with communication interfaces including TCP/IP, RS232, RS485, and Wiegand 26/34. The MORX CR32 includes an inbuilt relay for direct boom barrier integration — no additional controller required — making it the most popular model for vehicle entry gate automation.

Extended Long Range (15–20+ Metres)

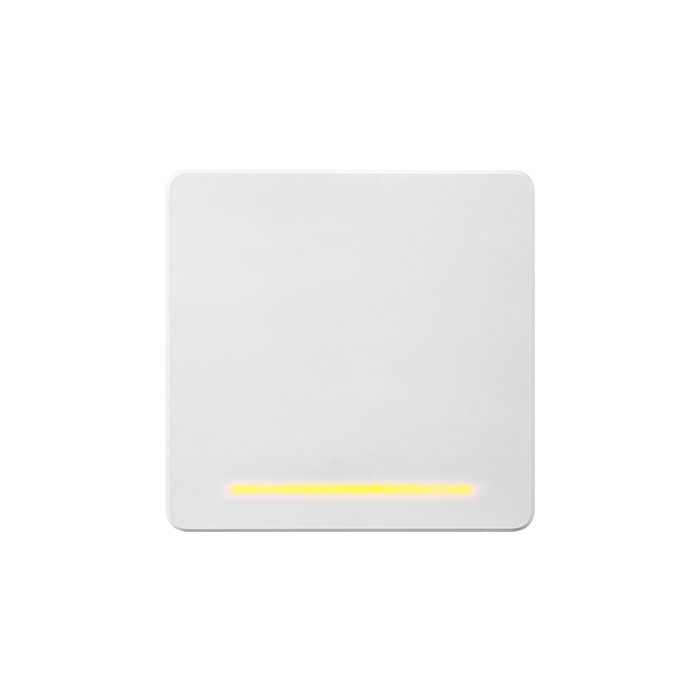

MORX CR20 (20m) and MORX HR15T (15m, Impinj RAIN RFID) are built for high-speed vehicle identification at toll plazas, open parking areas, and large industrial campus entry gates. The HR15T specifically supports FastTag application with EPC+TID+User memory and DC 24V industrial power.

Industrial Grade

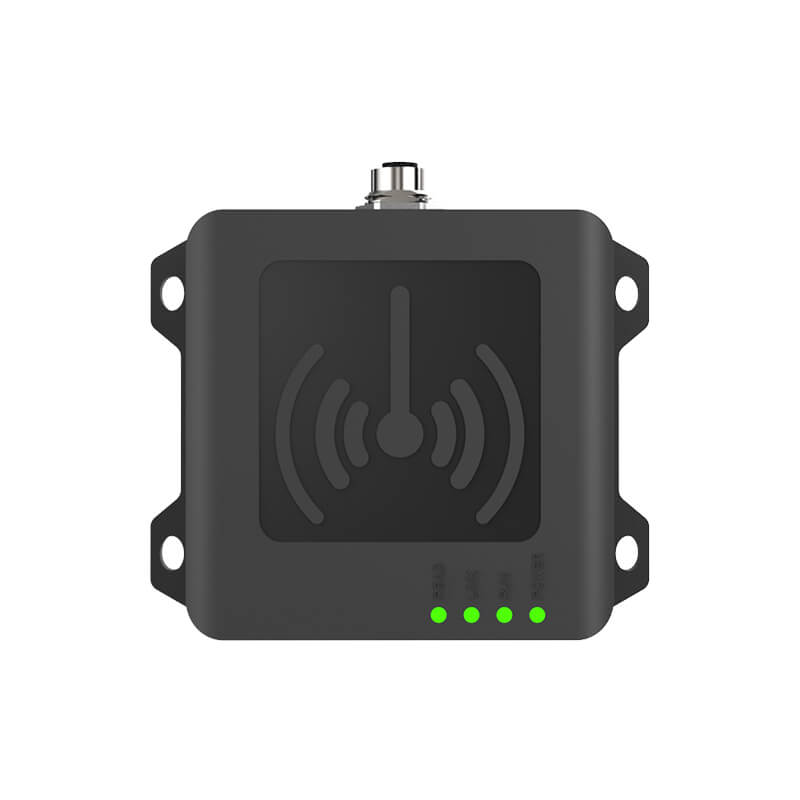

The MORX UHF Industrial Reader is rated for harsh factory environments — offering a 2m read range with GPIO relay I/O (2 trigger inputs, 2 relay outputs) for integration with industrial automation systems.

UHF Reader Selection Guide — Read Range vs Application

Key Applications of UHF RFID Integrated Readers

Warehouse Gate Automation

UHF readers mounted at warehouse entry and exit gates automatically log every RFID-tagged pallet or carton passing through — without stopping vehicles or requiring any manual scanning. Combine with RFID tags and fixed readers for a complete automated warehouse tracking system. See our Industrial & Warehouse solution.

Vehicle Identification & Boom Barrier

The MORX CR32 directly connects to boom barriers with its inbuilt relay — no separate controller needed. Vehicles with RFID windshield tags are identified at 12–15m and the barrier opens automatically. Used in residential societies, factories, IT parks, and commercial complexes.

Toll & FastTag Applications

The HR15T is built on an Impinj RAIN RFID chipset and offers EPC, TID and user memory, and it is listed for FastTag applications at toll lanes. It reads up to 15 metres and runs on DC 24V. Confirm the compliance requirements of your specific toll integration with Mivanta before ordering.

Access Control with Wiegand Integration

All Morx CR series readers support Wiegand 26/34 output, allowing direct connection to standard access control panels for RFID-based door or gate access without additional middleware.

Read range in practice

Metal surfaces, water, the angle of the tag and tinted windscreens all cut the range. A sensible habit is to pick a reader one step above the distance you need, then fix the mounting height and tilt with a sample tag before any drilling. In India, UHF RFID equipment for open use works in the 865 to 867 MHz band, so confirm that the model you order is set for it.

Linear or circular antenna: which to pick

(8 dBi), CR33 and CR33L (9 dBi). They suit parking lanes and open areas where tags end up at different angles. Linear readers push a narrower, longer beam down one path. These are the CR06 and CR20 (9 dBi) and the CR32 series (12 dBi, the highest gain listed among the integrated models). They suit a single-lane gate where every tag is mounted the same way.

Interface guide

What to send with your quote request

• Gate or portal width and the distance from the reader to the tag path
• Tag type, or the vehicle and where the tag will be fixed
• What the reader connects to: a boom barrier, a controller or software
• Indoor or outdoor mounting
• Quantity, and the delivery city

Buying UHF integrated readers from Mivanta

Mivanta is the authorised distributor of Morx UHF readers in India. Orders range from two units for a single gate to bulk quantities for larger projects, and they go to system integrators, dealers and project buyers. Documentation and pre-sales help come with the order. Use the Inquiry button on the model, or write to info@mivanta.com with the details above. For warehouse gates, see the Industrial & Warehouses solution and the RFID antenna range for readers that use separate antennas.
