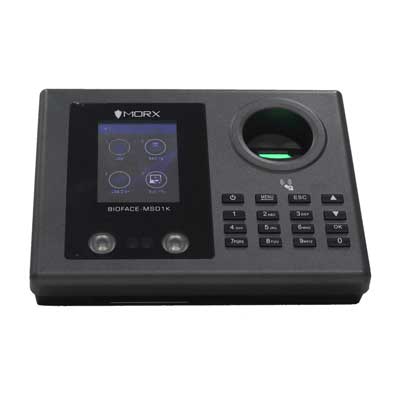

BioFace MSD1K
$81.00 $101.00
Time Attendance & Access Control Terminal
MSD1K is low cost Facial recognition terminal with multimode biometrics technology. Multi identification validation methods by RFID card, Fingerprint and Face capture combination. The 2.8 inch TFT high-definition color display with elegant feel. The MSD1K has TCP/IP communication,P2P network real-time communication, realize transport data with WIFI. Contactless Face capture attendance, easy to adjust. High recognition ability for face capture image even wears glasses, the identification time is less than 0.8 second. It is possible to integrate all kind of applications like ERP, HRMS, Payroll, Attendance and SAP with the device.
Body
| Display | 2.4” TFT |
|---|---|
| Keypad | Yes |
| Schedule Bell/Speaker | Mini Speaker |
Functionality
| Transaction storage | 100000 |
|---|---|
| Fingerprint sensor(Biometric systems) | 500 DPI Optical sensor |
| Identification speed | <0.5 sec |
| Face capapcity | 1000 |
| Fingerprints templates | 5000 |
| ID card storage | 1000 |
| Push Data | Yes |
Technicle Specification
| Communication | TCP/IP, RS232/485, USB Host |
|---|---|
| FRR | <=1% |
| FAR | <=0.0001% |
| Finger placement angle | 360° rotation allowed |
| Power supply | 12V: 3A |
| Card Reader | Inbuilt proximity card reader |
| Temperature | 0 °C- 45 °C |
| Wiegand Signal | Output |
| Batttery backup | 2000mAH |
| Humidity | 20% - 80% |
Accessories
| Wiring Connections | Electric Lock |
|---|---|
| Accessories | Power Adapter, USB Cable |
Misc.
| Compatible Software and SDK | Desktop / Web or Cloud based software available; SDK for third party software will be provided based on the request. |
|---|---|
| Optional Funcations | Mifare card, Wi-Fi, 3G |
Get the latest downloads includes software & drivers upgrades.
Download Drivers
