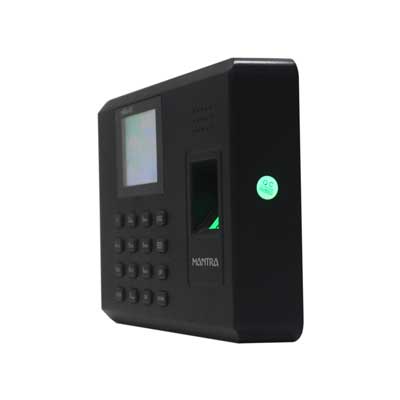

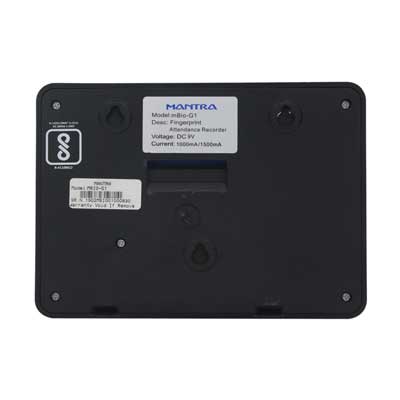

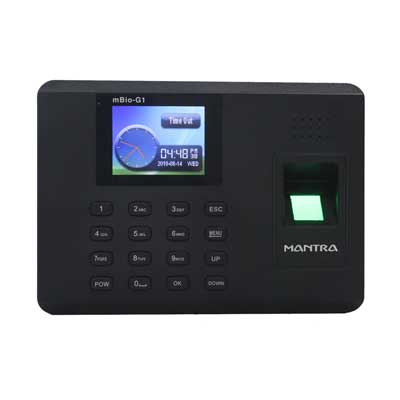

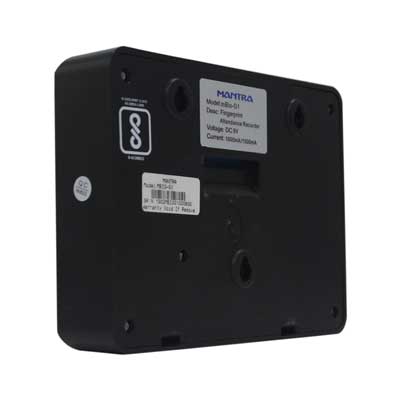

mBio-G1 is a professional Color display fingerprint time attendance system designed for medium to large size enterprise, it integrates fingerprint identification, built in RFID card reader, with TCP/IP Communication. It is possible to integrate all kind of applications like ERP, HRMS, Payroll, Attendance and SAP with the device. It support various communication interface like TCPIP, USB to communicate with Host PC. It also gives real-time transactions on transactions monitor.
Body
| Display | 2.8" Color TFT |
|---|---|
| Battery | 1000mAh |
| Keypad | Yes |
| Schedule Bell/Speaker | Mini Speaker |
Functionality
| LED Indicator | Available |
|---|---|
| Operating humidity | 20% -80% |
| Operating temperature | 0oC to 45oC |
| Fingerprints templates storage capacity | 1000 |
| Card Storage (RFID) | 1000 |
| Transaction storage | 100000 |
| Fingerprint sensor(Biometric systems) | 500 DPI Optical sensor |
| Identification speed | <1 sec |
| Algorithm Ver | 10 |
Technicle Specification
| LCD Display | 2.4” TFT Color Screen |
|---|---|
| Fingerprint / Card Capacity | 1,000 / 1, 000 |
| Log capacity | 1,00,000 |
| Fingerprint scanner | Optical fingerprint Scanner |
| Authentication Method | Fingerprint, Password |
| Identification Mode | Fingerprint, PIN, Card |
| Verification Mode | 1:N,1:1 |
| Language | English |
| FRR | < 0.01% |
| FAR | < 0.0001% |
| FRR | < 0.01% |
| Identification Time | =0.5S |
| Communication | TCP/IP, USB Drive/Link |
| Push Data Technology | YES |
| Real-time transmission | < 0.01% |
| Voice Prompt | High-definition Pronunciation |
| Operation humidity | 20-60% |
| Operation temperature | 0 C-60 C |
| Power Adapter | DC 9V |
| Battery Backup | 1000mAh |
Accessories
| Accessories | Power Adapter |
|---|
Misc.
| Compatible Software and SDK | PAYTIME/PAYTIME-DM/ MINOP, SDK for third party software will be provided based on the request. |
|---|
