mBio-ST2 can be used as a standalone access control reader by connecting a door lock, exit switch, alarm and door sensor to the relay contacts. The Wiegand IN and OUT ports can be used to connect 3rd party access control panels and peripherals. The mBio-ST2 also includes a USB port for offline data backup/management.
Body
| Battery | NA |
|---|---|
| Dimension | 88*88*130 mm |
Functionality
| Fingerprint Capacity | 3000 |
|---|---|
| ID Card Capacity | 1000 |
| Record Capacity | 100000 |
| Card Type | Proximity card |
| Identify mode | Finger, Card, Password |
| LED Indicator | 2 LED Status (Green, Red) |
| Voice Prompt | NA |
| Identification Time | ≤ 1 sec |
| Keypad Type | Numeric |
| Wiegand/RS485 Interface | Wiegand Input & Output 26/34 bit |
Technicle Specification
| Fingerprint scanner type | 600 DPI Optical Sensor |
|---|---|
| Communication | USB |
| Push Data technology | NA |
| FRR | 0.001 |
| FAR | 1.0E-6 |
| Operation Humidity | 20% ~ 80% |
| Operation Temperature | 10° C ~ 60° C |
| Power | DC 12V 2A |
| Finger placement angle | 360° rotation allowed |
Accessories

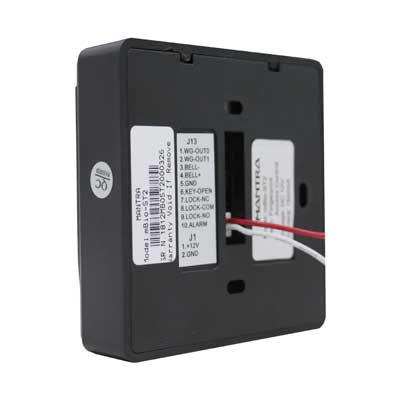

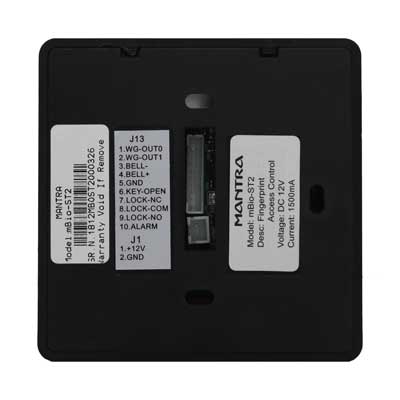

| Wiring Connections | External Card Reader, Electric Lock, Exit Button, Alarm, Bell |
|---|
