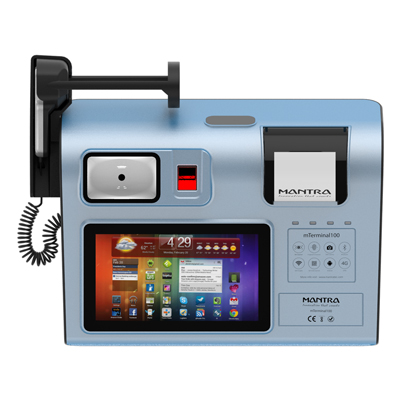

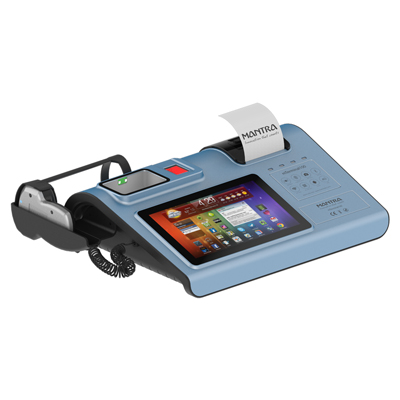

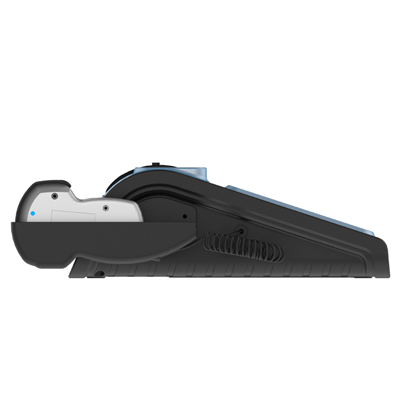

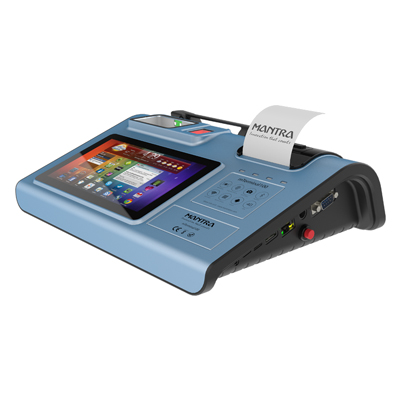

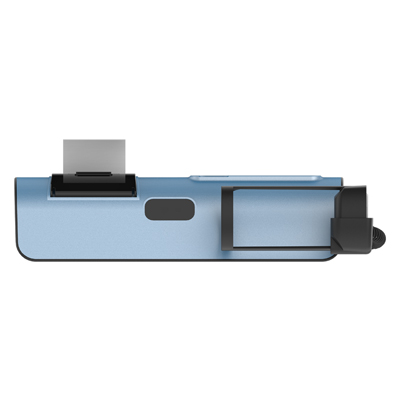

mTerminal100
IRIS & Fingerprint Biometric POS Machine
Mantra mTerminal100 IRIS & Fingerprint Biometric POS Machine is an all-in-one, affordable, Mobile terminal consisting of various Biometrics Technology.
A contemporary aesthetic that blends perfectly with modern architecture
1 GHz Dual Core ARM processor
Support STQC/Aadhaar Certified Fingerprint, IRIS reader
Dual GSM/LTE Sim Slot and Supports GPRS/3G/4G and WiFi Interface
Mantra mTerminal 100 is an IRIS and fingerprint POS machine that is developed based on the latest biometric technology. The Biometric POS machine mTerminal100 makes the payment process relatively faster and accurate.
This innovative Biometric Handheld Terminal will dramatically improve Bank's ability to serve unbanked users from rural areas in online & offline mode. mTerminal100 is equipped with classy Remote Management Application so that the Administrator has access to all the device activity in online real time mode, for example, Battery status, Health of the device, Log In & Out activity, Transaction logs and Management Logs.
Support STQC/Aadhaar Certified Fingerprint, IRIS Reader
8GB Flash for Storage of Fingerprint Templates / Photos with Transactions
3G/4G/GPS/Bluetooth/ WIFI Connectivity
Quad Core Processor & Android OS
Online/Offline Software Makes Individual Operation Easy to Manage
Inbuilt Battery Backup to Ensure 99.9% Uptime
Data Retention in Case of Power Failure, No Loss of Data
Contemporary Aesthetic that Blends Perfectly with Modern Architecture
Easy Integration
De-clutter cash counter
Makes Reconciliation easy
Web -based time reporting tool
Handheld EDC mobility
Pay by Card, Swiftly & Securely
Display | 7” IPS LCD, 1024 X 600 Resolution, Multi Touch Capacitive Touch Screen With Tuffen Glass |
---|---|
Processor | 1 GHz Quad Core ARM Processor |
RAM | 1 GB |
Inbuilt Storage | 8 GB Flash Memory |
Expansion Slot | Micro SD Slot Supporting up to 32 GB Memory Card |
Audio | Good Quality Speaker - 1W Speaker |
Connectivity | Dual 4G/3G/2G Micro SIM Slot, WiFi Interface & Bluetooth |
GPS | Supports GPS and AGPS |
USB Ports | Micro USB OTG as Debug Port, Additional USB2.0 Slave Port |
Battery | Swappable & Rechargeable 10,000mAH Li-ion/Li-Polymer Battery |
Camera | 5MP Auto-Focus Camera for Reading QR Code and 2D Barcode, 2MP Front Camera (Optional) |
Indicators | Status Indicator Provides Ease of Use. Indicators are for Better Connectivity (Presence/Absence), Signal Strength, Battery Status etc. |
SAM Slot | SAM Slot to Secure Loading of Applications |
Certification | CE, RoHS, BIS IS13252 (Part 1) |
Ethernet | 10/100 Mbps Supported RJ-45 Interface |
Other Interface | RS232, Relay with Non Potential Contacts |
Operating System | Android |
Power On/Off | External Power On/Off Button |
DC Power | Separate DC Jack for Power Input |
Power Adapter | Power Adapter with Surge Protection |
External Keyboard Support | Device Can Support Keyboard Through USB or Bluetooth Interface |
Spatial Resolution | > 50% @ 1.0 LP/mm |
---|---|
Pixel Resolution | > 10 Pixels/mm |
Image Margins Left & Right | >=0.6x IRIS Radius |
Top & Bottom | >=0.2x IRIS Radius |
Imaging Wavelength | 700-900 nm |
Pixel Depth | 8 Bits/Pixel |
Certification | Mantra MIS100V2 STQC/UIDAI Certified IRIS Sensor |
Fingerprint Sensor | Optical (Scratch Free Sensor Surface) |
---|---|
Image Resolution | 500 DPI / 256 Gray |
Sensing Area | 16 x 18 mm |
FAP | FAP10 |
Certification | Mantra MFS100 STQC/UIDAI Certified Fingerprint Sensor |
Printing Speed | 70mm/s |
---|---|
Effective Printing Width | 48mm |
Style | Black and White |
Printer | Integrated 2" Thermal Printer |
