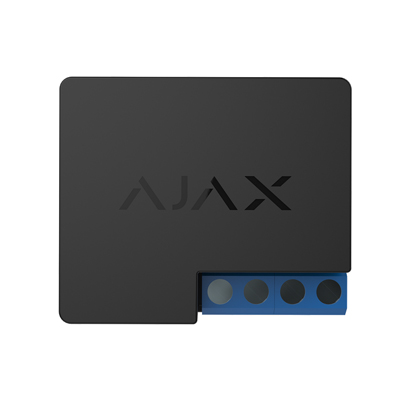

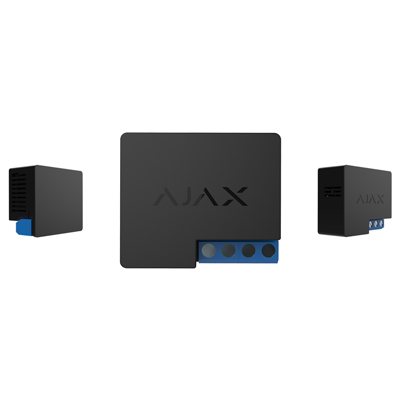

Radio channel controller for remote control of low current equipment. It is used to activate electric locks, gates and swing gates, rolling shutters and blinds, and to restart modems and routers.
Principle of operation
The device controls electric power supply by means of relay, which closes and opens the dry contact.
Operates from 7—24 V DC voltage sources. The dry contact is not galvanically connected to the device itself.
Installation and set up
The device is installed in junction boxes, distribution boards, and enclosures of switching units.
|Protection class of body||IP20|
|Operating temperature range||0°С to +64°С|
|Installation method||Into electric switchboard, junction box|
|Compatibility||Operates only with Hub and Hub Plus|
|Alarm signal delivery time||0,15 s|
|Permissible humidity||Up to 75%|
|Anti-sabotage||Protection against fraud Jamming detection|
|Classification||Radio channel relay unit|
|Power supply||7—24 V (DC only)|
|Actuating element||Electromagnetic relay|
|Voltage protection||Max — 36.5 V, min — 6.5 V|
|Maximum load current||5A at 36V DC, 13A at 230V AC|
|Maximum current protection||No|
|Maximum temperature protection||65°C at the place of installation|
|Electric power meter function||No|
|Energy consumption parameter check||Voltage|
|Relay service life||200,000 switch-ons|
