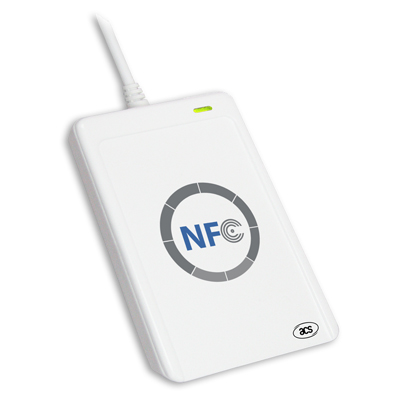

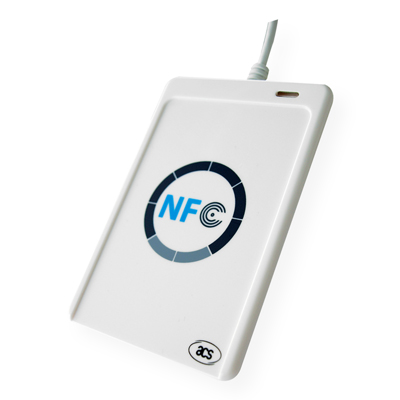

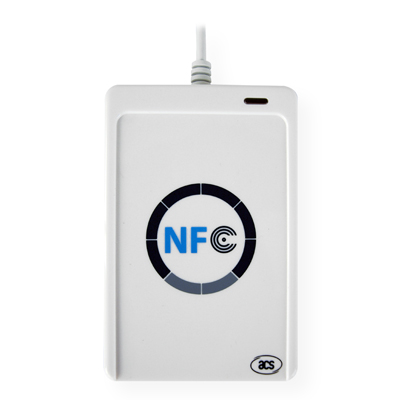

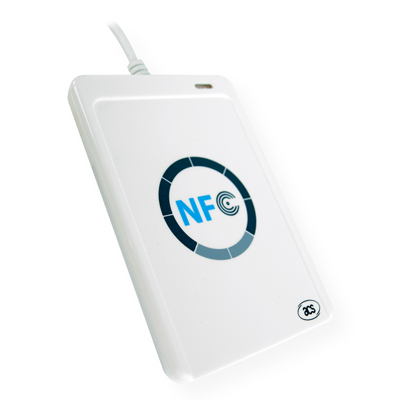

RFID Contactless Smart IC Card Reader
The AC122UR-A9 NFC Reader is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only MIFARE® and ISO 14443 A and B cards, but also all four types of NFC tags.
AC122UR-A9 is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, AC122UR-A9 can also read and write more quickly and efficiently. The proximity operating distance of AC122UR-A9 is up to 5 cm, depending on the type of contactless tag in use.
In order to increase the security level, AC122UR-A9 can be integrated with an ISO 7816-3 SAM slot. Furthermore, the AC122UR-A9 NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.
The AC122UR-A9 NFC Reader is ideal for both secure personal identity verification and online micro-payment transactions. Other applications of the AC122UR-A9 include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.
The AC122UR-A9 comes with an optional stand to hold the smart card reader at an optimal angle, so that users can tap contactless cards or NFC-enabled devices onto the AC122UR-A9 with ease. For more information, click here to download the brochure of this special accessory.
The AC122UR-A9 USB NFC Reader has been counterfeited by certain law-breaking parties. We issue the following declaration to inform our stakeholders of how we are addressing this issue, and to inform customers on how they can protect themselves against illegal products. For more information, please click here.
USB 2.0 Full Speed Interface
Smart Card Reader :-
Read/write speed up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Built-in anti-collision feature (only 1 tag is accessed at any time)
Application Programming Interface :-
Supports CT-API (through wrapper on top of PC/SC)
User-controllable bi-color LED
Supports Android™ OS 3.1 and above
Banking & Payment
e-Purse & Loyalty
|Interface||USB Full Speed|
|Card Connector Type||Contactless Smart Card Reader/Writer|
|Operating System Support||Windows, Win CE 5.0 and 6.0 , Linux ,Mac , Solaris ,Android 3.1 and above|
|Operating Distance||Upto 50mm (depends on the tag type)|
|Smart Card Interface Support||ISO 14443 Type A & B, Mifare, FeliCa, 4types of NFC(ISO/IEC 18092) tags|
|Temperature||0° to 60° C|
|Supply Voltage/aria-current||5V DC/Max 200mA|
|Compliance/Certifications||ISO18092, ISO14443, PC/SC,CCID,EN60950/ISO60950,CE,FCC,MIC,KC,VCCI, RoHS2 ,WHQL|
Get the latest downloads includes manuals, software and drivers upgrades,brochures and connection diagrams.Download Drivers
