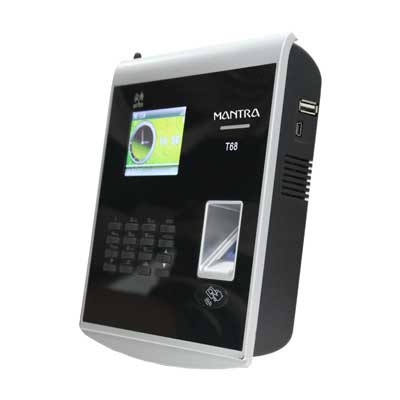

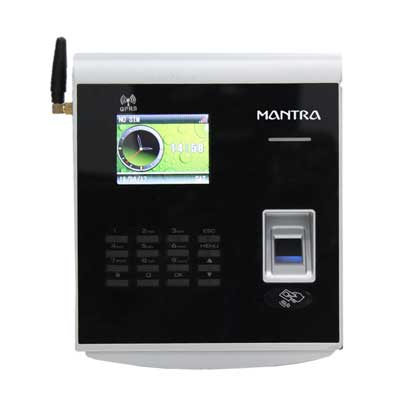

BioGPRSV1 is an innovative GPRS Based biometric fingerprint reader with for time attendance with Access control application, precision & excellent matching speed. The 2.8 inch TFT can display more information vividly, including fingerprint image quality & verification result etc. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds. It is possible to integrate all kind of applications like ERP, HRMS, Payroll, Attendance and SAP with the device.
Body
| Display | 2.8" Color TFT Screen |
|---|---|
| Battery | Inbuilt Battery Back-up |
Functionality
| Fingerprint Capacity | 3000 |
|---|---|
| ID Card Capacity | 3000 |
| Record Capacity | 100000 |
| Card Type | Proximity card |
| Identify mode | Finger, Card, Password |
| LED Indicator | 2 LED Status (Green, Red) |
| Voice Prompt | Yes |
| Identification Time | < 1 sec |
| Keypad Type | T9 input |
| Wiegand/RS485 Interface | Wiegand Output 26/34 bit |
Technicle Specification
| LCD Display | 2.8” TFT Color Screen |
|---|---|
| Fingerprint / Card Capacity | 3,000 / 3, 000 |
| Log capacity | 1,00,000 |
| Fingerprint scanner | Optical fingerprint Scanner |
| Authentication Method | Fingerprint, card, Password |
| Identification Mode | Fingerprint, PIN, Card |
| Verification Mode | 1:N,1:1 |
| Language | English |
| Identification speed | =0.5 sec |
| Fingerprint sensor resolution | 500 dpi |
| Fingerprint sensor area | 16mm * 14mm |
| FRR | <0.01% |
| FAR | < 0.0001% |
| Identification Time | =0.5S |
| Communication | TCP/IP, USB Drive/Link |
| Push Data Technology | YES |
| Real-time transmission | YES |
| Voice Prompt | High-definition Pronunciation |
| Operation humidity | 20-60% |
| Operation temperature | 0 C-60 C |
| Power Adapter | DC 9V |
| Battery Backup | 1000mAh |
Accessories
| Wiring Connections | Power Adapter/ USB cable |
|---|
Misc.
| Compatible Software and SDK | PAYTIME, SDK for third party software will be provided based on the request. |
|---|
