MISTAB
IRIS Scanner

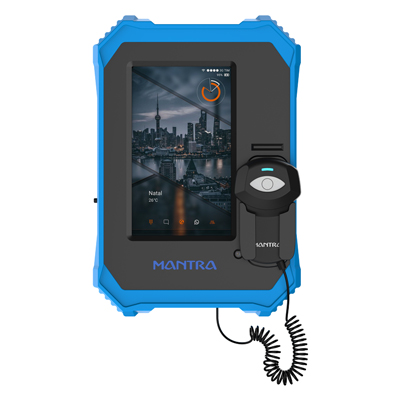

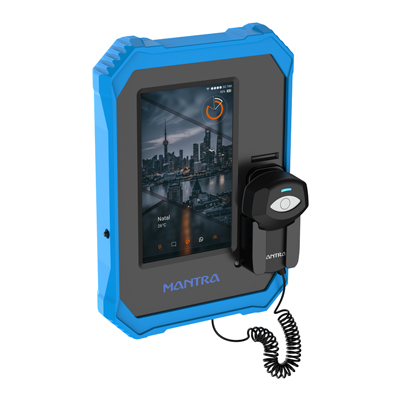

Mantra MISTAB IRIS Scanner is all-in-one, affordable, Wi-Fi enabled IRIS device . It can be used for various applications such as Time and Attendance Management, Access Control Management, Work flow Management, Canteen Management, Visitor Management, Worker Management .
A contemporary aesthetic module that blends perfectly with modern architecture
Support STQC/Aadhaar Certified Fingerprint, IRIS reader
Can optionally Connect RJ45 Connection, support all network protocols
Mantra MISTAB biometric device is a comprehensive and affordable solution for iris recognition equipped with WiFi enabled IRIS Sensor. IRIS Scanner device can be used for various applications such as Biometric Attendance System, Access Control Management, Work flow Management, Canteen Management, Visitor Management, Worker Management and more.
Our innovative IRIS recognition biometric devices will dramatically improve the ability to monitor your workforce movements during their working patterns. Biometric eye scanner comes with compelling features that provide you with a better time and management reporting. With IRIS scanner device superior accuracy and affordable performance can be achieved through our integrated camera feature with the Android operating system based tablet.
The contemporary aesthetic that blends perfectly with modern architecture
Support STQC/Aadhaar Certified IRIS reader
Can optionally Connect RJ45 Connection, support all network protocols
Wi-Fi means cable less
Data retention in case of power failure, no loss of data
Online/Offline software makes individual operation easy to manage.
Inbuilt battery backup to ensure 99.9% up time
Time Attendance
Aadhaar Authentication
Financial Inclusion/eKYC
Visitor Management
Access Control
Worker Management
| Processor | 1.2 GHz Quad Core |
|---|---|
| Display | 7 inch or higher ; 1024x600 resolution |
| Memory | Internal memory - 8 GB, RAM - 2 GB |
| Connectivity | Wi-Fi 802.11 b/g/n, Bluetooth v4.0 Single SIM with 4G support (Bands - LTE 850 (5), LTE 1800 (3), LTE 2100 (1), LTE 2300 (40)) |
| Audio Jack | Microphone with High Amplitude Speakers |
| Camera | 5MP Rear Camera with auto focus and LED flash |
| Technology | GPS |
| Battery | 6000 mAH |
| Spatial Resolution | > 50% @ 1.0 LP/mm |
|---|---|
| Pixel Resolution | > 10 Pixels/mm |
| Image Margins Left & Right | >=0.6x IRIS Radius |
| Top & Bottom | >=0.2x IRIS Radius |
| Imaging Wavelength | 700-900 nm |
| Pixel Depth | 8 bits/pixel |
| Output Image | KIND1 to KIND7 with JPEG2000 Compression |
| Capture Mode | Auto capture with built-in quality check |
| Capture time | < 2 sec |
| Safety | Exempt Group per IEC 62471:2006-07 |
| Health-Safety | RoHS Complaint |
| ESD Protection | Air discharge+-8 KV, Contact type+-4Kv |
| Radiated Emission | FCC part15B/IEC:CISPR 22 CLASS B standard |
| Radiated Immunity | As per IEC/EN 61000-4 3:2006+A2:2010 |
| Connectivity | USB 2.0 / USB 1.1 |
| Operating System | Support Windows XP, Win7, Win2008, Android, Linux, Embedded Linux |
