SEM 01

$81.00 $101.00

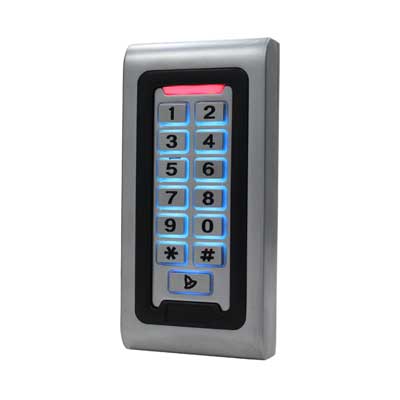

Stand Alone Access Control Terminal

The unit is single door multifunction standalone access controller or a Wiegand output keypad or a card reader. It is suitable for mounting either indoor or outdoor, in harsh environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish. The electronics are fully potted so the unit is waterproof and conforms to IP65. The inbuilt card reader supports 125KHZ EM cards,13.56MHz Mifare cards. The unit has many extra features including lock output current short circuit protection, Wiegand output , and a backlit keypad. These features makes the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.

Battery NA
Body Strong Zinc Alloy Electroplated anti-vandal case
Dimension 12*56*20 mm
ID Card Capacity 2000
Record Capacity NA
Card Type Proximity card, Mifare (optional)
Identify mode Card, Password
LED Indicator 3 LED Status (Green, Yellow, Red)
Keypad Type Numeric Backlight keys
Wiegand/RS485 Interface Wiegand Input & Output 26/34 bit
Waterproof Conforms to IP68
Technicle Specification
Communication NA
Operation Humidity 10% ~ 90%
Operation Temperature 10° C ~ 60° C
Power DC 12V 3A

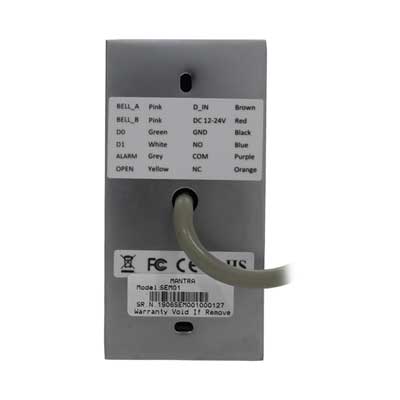

Wiring Connections External Card Reader, Electric Lock, Exit Button, Alarm, Bell
