mBio 7S

$81.00 $101.00

Time Attendance & Access Control terminal

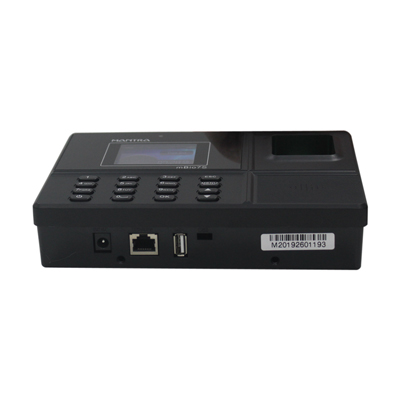

mBio-7N is a professional Color display fingerprint time attendance and access control system designed for medium to large size enterprise, it integrates fingerprint identification, built in RFID card reader, with TCP/IP Communication. It is possible to integrate all kind of applications like ERP, HRMS, Payroll, Attendance and SAP with the device. It support various communication interface like TCPIP, USB to communicate with Host PC. It also gives real-time transactions on transactions monitor.

Display 2.8” Color TFT
Battery 1000 mAH
Keypad Yes
Schedule Bell/Speaker Mini Speaker
LED Indicator Onscreen Status
Operating humidity 20% - 80%
Operating temperature 0˚C to 45˚C
Fingerprints templates storage capacity 1000
Card Storage (RFID) 1000
Transaction storage 100000
Fingerprint sensor(Biometric systems) 500 DPI Optical sensor
Identification speed <1 sec
Algorithm Ver 10
Technicle Specification
LCD Display "2.4 “ TFT Color Screen"
Fingerprint / Card Capacity 1,000 / 1,000
Log capacity 1,00,000
Fingerprint scanner Optical fingerprint Scanner
Authentication Method Fingerprint, card, Password
Identification Mode Fingerprint, PIN, Card
Verification Mode 1:N,1:1
Language English
Fingerprint sensor resolution 500 dpi
FRR <0.01%
FAR < 0.0001%
Access Control Interface Electric Lock, Door Sensor, Exit Button, and wiegand reader
Connection Interface Wiegand Input & Output 26/34 bit
Communication TCP/IP, USB Drive/Link
Push Data Technology YES
Real-time transmission YES
Voice Prompt High-definition Pronunciation
Operation humidity 20% ~ 80%
Operation temperature 0°C ~ 45°C
Power Adapter DC 9V: 1.5Amp
Battery Backup yes
Accessories Power Adapter, USB cable
Compatible Software and SDK PAYTIME,PAYTIME-DM,MINOP, SDK for third party software will be provided based on the request.
