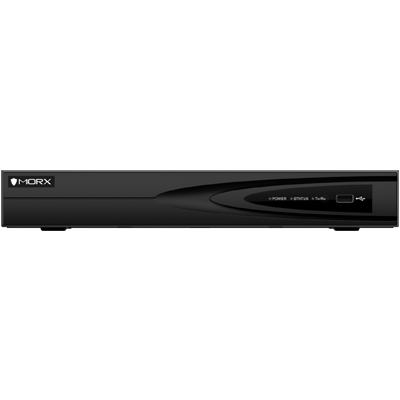

Captured video is only as good as the devices that store it and play it back. Whether you are installing a new surveillance system or upgrading an existing one, aim for the best with Morx’s Embedded NVRs. It has H.265+ Compression that Improves Encoding Efficiency up to 75% and Reduces Data Storage Costs.Don’t take chances with inferior video recording devices. Get the confidence that comes with powerful and reliable NVRs.
Environment features NVR support alarm detection VCA and VCA search. The image is displayed on a monitor or TV screen through a connection via HDMI (up to 4K (3840x2160)) and a VGA (1920x1080p) connector. Playback is possible on two channels of 4K format and four channels of 1080p format. To organize storage on board the recorder, there is a slot for connecting a hard disk with an allowable volume of up to six terabytes each. A network connection is made through the gigabit RJ45 port (10M / 100M / 1000M). In support of the whole “arsenal” of network protocols: TCP / IP, DHCP, Morx Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP ™, HTTPS. To supply power, you need an adapter with a working DC voltage of 12 volts.
HD Input
H.265+/H.265/H.264/H.264+ Video Formats
Connectable to the Third-Party Network Cameras
Up to 16 IP Cameras can be Connected
Recording at up to 8 MP Resolution
Live View, Storage, and Playback of the Connected Camera at up to 8 MP Resolution
HD Output
HDMI and VGA Independent Outputs
HDMI Video Output at up to 4K (3840 × 2160) Resolution
HD Storage
1 SATA Interface Connectable for Recording and Backup
H.265+ Compression Effectively Reduces the Storage Space and Costs up to 75%
HD Transmission
1 Self-Adaptive 10/100/1000 Mbps Network Interface
Various Applications
Centralized Management of IP Cameras, Including Conguration, Information Import/Export, Real-Time Information Display, Two-way Audio, Upgrade, etc.
Connectable to Smart IP Cameras From Morx and the Recording, Playing Back, and Backing up of VCA Alarms can be Realized
VCA Detection Alarm is Supported
Instant Playback for Assigned Channel During Multi-Channel Display Mode
Smart Search for the Selected Area in the Video; and Smart Playback to Improve the Playback Efficiency
IP Video Input | 16-ch |
---|---|
Up to 8 MP Resolution | |
Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
Incoming Bandwidth | 160 Mbps |
---|---|
Outgoing Bandwidth | 80 Mbps |
Recording Resolution | 8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF |
---|---|
HDMI Output Resolution | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA Output Resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 |
---|---|
Live View / Playback Resolution | 8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF |
Synchronous Playback | 16-ch |
Capability | 1-ch @ 8 MP / 4-ch @ 1080p |
Network Protocols | TCP/IP, DHCP, Morx-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
---|
SATA | 1 SATA Interface |
---|---|
Capacity | Up to 6TB Capacity for Each Disk |
Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
---|---|
USB Interface | 2 × USB 2.0 |
Power Supply | 12 VDC |
---|---|
Power | ≤ 18 w |
Consumption (Without Hard Disk) | ≤ 10 w |
Working Temperature | -10 to +55º C (+14 to +131º F) |
Working Humidity | 10 to 90 % |
Chassis | 1U Chassis |
Dimensions (W × D × H) | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
Weight (Without Hard Disk) | ≤ 1 kg (2.2 lb) |
