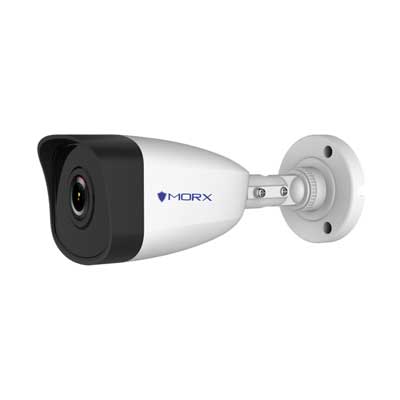

Its an 2.0 MP CMOS Network Bullet Camera boasts a broad range of impressive features as well as amazing image quality wrapped up in a small, functional bullet style case. With its IP67 rating, PoE support and 30m IR range, this IPC is well suited to life outdoors but thanks to its small form factor and non intrusive design, you could mount it anywhere. Central management is easy with the comprehensive NVR software but it can also be monitored on the go using the Morx-Connect mobile app.
It's designed for the domestic to small business market, offering customers fantastic quality products at hugely competitive prices in comparison with their professional trade only range and other manufacturers.
1/2.8" Progressive Scan CMOS
2.0 Megapixel
2.8 mm/4 mm/6 mm Fixed Lens
Up to 30 m IR Range
Dual Stream
Digital WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
PoE (Power over Ethernet)
IP67
| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s, Support Slow Shutter |
| Lens | 2.8 mm @F2.0, Horizontal Field of View 105.8°, 4 mm @F2.2, Horizontal Field of View 83.6° 6 mm @F2.0, Horizontal Field of View 55° |
| Lens Mount | M12 |
| Day &Night | IR Cut Filter with Auto Switch |
| 3-Axis Adjustment (Bracket) | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| DNR (Digital Noise Reduction) | 3D DNR |
| WDR (Wide Dynamic Range) | Digital WDR |
| Video Compression | Main Stream: H.264+/H.264 Sub Stream: H.264/MJPEG |
|---|---|
| H.264 Type | Baseline Profile/Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Max. Resolution | 1920 × 1080 |
|---|---|
| Main Stream Max. Frame Rate | 50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream Max. Frame Rate | 50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps @(704 × 480, 640 × 480, 352 × 240, 320 × 240) |
| Image Settings | Brightness, Saturation, Contrast, Sharpness Adjustable via Web Browser or Client Software |
| Day/Night Switch | Support Auto, Scheduled |
| Others | Mirror, BLC (Area Congurable), Region of Interest (Support 1 Fixed Region) |
| Detection | Motion Detection |
|---|---|
| Alarms | Video Tampering, Network Disconnected, IP Address Conicted |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Standard | ONVIF (PROFILE S), ISAPI |
| General Function | Anti-icker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Communication Interface | 1 RJ45 10M/100M Self-Adaptive Ethernet Port |
|---|
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: 95% or Less (Non-Condensing) |
|---|---|
| Power Supply | 12 VDC ± 25%, PoE (802.3af) |
| Power Consumption | 12 VDC, 0.4 A, Max. 5 W PoE (802.3af, 37 V to 57 V), 0.1 A to 0.2 A, Max. 6.5 W |
| Ingress Protection | IP67 |
| IR Range | Up to 30 m |
| Dimensions | 69.1 mm × 66 mm × 172.7 mm ( 2.7" × 2.6" × 6.8") |
| Weight | 500 g (1.1 lb.) |
