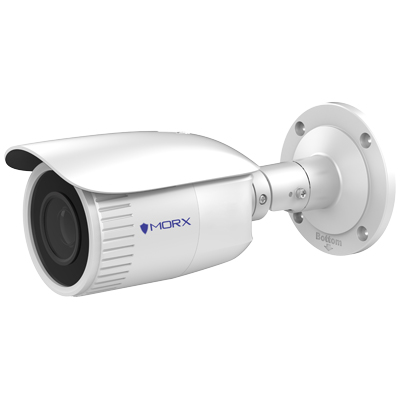

Its an 2.0 MP CMOS Network Bullet Camera boasts a broad range of impressive features as well as amazing image quality wrapped up in a small, functional bullet style case. With its IP67 rating, PoE support and 30m IR range, this IPC is well suited to life outdoors but thanks to its small form factor and non intrusive design, you could mount it anywhere. Central management is easy with the comprehensive NVR software but it can also be monitored on the go using the Morx-Connect mobile app.
1/2.8" Progressive Scan CMOS
2 Megapixel
2.8~12mm Motorized VF Lens
Up to 30 m IR Range
Dual Streams
3D DNR
IP67
Digital WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
PoE (Power over Ethernet)
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.017Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s, Support Slow Shutter |
| Lens | 2.8 ~12mm @F1.6 , Horizontal Field of View: 111.5° to 33° Vertical Field of View: 58° to 18.5°, Diagonal Field of View: 134° to 38° |
| Lens Mount | ф14 |
| Day &Night | IR Cut Filter With Auto Switch |
| 3-Axis Adjustment (Bracket) | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| DNR (Digital Noise Reduction) | 3D DNR |
| WDR (Wide Dynamic Range) | Digital WDR |
Compression Standard
| Video Compression | Main Stream: H.264, Sub Stream: H.264/MJPEG Baseline Profile/Main Profile |
|---|---|
| H.264 Type | Main Stream Supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Max. Resolution | 1920 × 1080 |
|---|---|
| Main Stream Max. Frame Rate | 50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-stream Max. Frame Rate | 50Hz: 25fps @(640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps @(640 × 480, 640 × 360, 320 × 240) |
| Image Settings | Rotate Mode, Brightness, Saturation, Contrast, Sharpness are Adjustable Via Web Browser or Client Software |
| Day/Night Switch | Day, Night, Auto, Scheduled |
| Others | BLC/3D DNR |
Network
| Alarm Trigger | Motion Detection, Video Tampering, Network Disconnected, IP Address Conflict, HDD Full, HDD Error, PIR, Illegal Login |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark |
| Firmware Version | V5.5.5 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 Channels |
| User/Host | Up to 32 Users, 3 Levels: Administrator, Operator and User |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
Interface
| Communication Interface | 1 RJ45 10M/100M Self-Adaptive Ethernet Port |
|---|---|
| Video Output (Without -Z) | 1Vp-p Composite Output (75Ω/BNC) |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC Slot, up to 128 GB |
| Reset | Yes |
General
| Operating Conditions | -30 °C to 60°C (-22 °F to 140°F),Humidity: 95% or Less (Non-Condensing) |
|---|---|
| Power Supply | 12 VDC ± 25%, PoE (802.3af, Class 3) |
| Power Consumption | With Z: 12 VDC, 0.9 A, Max. 11 W PoE (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max. 12.9 W |
| Without Z: 12 VDC, 0.6 A, Max. 7 W PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, Max. 9 W | |
| Ingress Protection | IP 67 |
| IR Range | Up to 30 m |
| Material | Metal |
| Dimensions | ф105 mm × 244.4 mm (4.1" × 9.6") |
| Weight | 705 g (1.6 lb.) |
