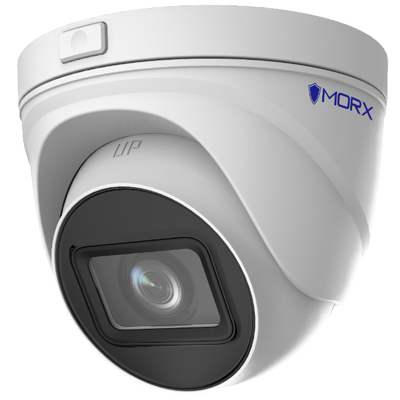

It has superb value higher resolution turret IP camera by morx. This camera has POE and is plug and play with the Morx NVRs. This camera support the H.264+ protocol also for reduced storage requirementsIt is a 2 megapixel fixed lens true day/night turret dome camera with DWDR. This camera has an IR range of up to 30m and is IP67 rated. This camera has features such as region of interest, day/night function and Digital wide dynamic range.
This is one of the new H.264+/H.264 models saving you considerable bandwidth and recording space in comparison to the older H.264 models.
1/2.7" Progressive Scan CMOS
1920 × 1080@30fps
2.8~12mm Motorized VF Lens
Color: 0.01 Lux @(F1.2, AGC ON), 0.02 Lux @(F1.6, AGC ON)
3D DNR
Up to 30 m IR Range
IP67
Digital WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
PoE (Power over Ethernet)
| Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.02 Lux @(F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-IRIS | No |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Focal Length | 2.8~12mm Motorized VF Lens |
|---|---|
| Aperture | F1.6 |
| Focus | No |
| FOV | Horizontal FOV 91.5° to 35.8°, Vertical FOV 49.2° to 20°, Diagonal FOV 106.2° to 40.5° |
| Lens Mount | ф14 |
| IR Range | Up to 30 m |
|---|---|
| Wavelength | 850nm |
| Video Compression | Main Stream: H.264 Sub Stream: H.264/MJPEG |
|---|---|
| H.264 Type | Baseline Prole/Main Prole |
| H.264+ | Main Stream Supports |
| H.265 Type | No |
| H.265+ | No |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Region of Interest | No |
|---|
| Max. Resolution | 1920 × 1080 |
|---|---|
| Main Stream Max. Frame Rate | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream Max. Frame Rate | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Brightness, Saturation, Contrast, Sharpness Adjustable via Web Browser or Client Software |
| Day/Night Switch | Support Auto, Scheduled, Day, Night |
| Alarm Trigger | Motion Detection, Video Tampering, Network Disconnected, IP Address Conflict, Illegal Login, HDD Error, HDD Full |
|---|---|
| Network Storage | No |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Firmware Version | V5.5.52 |
| API | ONVIF(PROFILE S,PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 Channels |
| User/Host | Up to 32 Users 3 Levels: Administrator, Operator and User |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Communication Interface | 1 RJ45 10M/100M Self-Adaptive Ethernet Port |
|---|---|
| On-board Storage | No |
| Reset Button | No |
| Operating Conditions | -30 °C to 60°C (-22 °F to 140°F), Humidity: 95% or Less (Non-Condensing) |
|---|---|
| Power Supply | 12 VDC ± 25%, 5.5 mm Coaxial Power Plug PoE (802.3af, Class 3) |
| Power Consumption | 12 VDC, 0.8 A, Max: 9.5 W PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.1 A, Max: 11 W |
| Ingress Protection | IP67 |
| Material | Camera Body: Metal, Bottom Base: Plastic |
| Dimensions | Camera: Ø 129.4 mm × 116.4 mm (5.1" × 4.6") With package: Ø 170 mm × 150 mm (6.7" × 5.9") |
| Weight | Camera: 560 g (1.2 lb.) With Package: 850g (1.9 lb.) |
