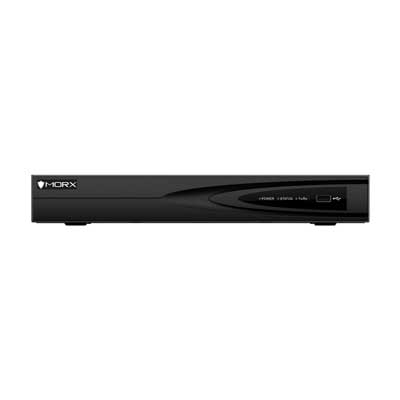

MX D04P1

$81.00 $101.00


Captured video is only as good as the devices that store it and play it back and can handle 4 channel simultaneously. Built-in PoE switch for 4 channels RJ45 (10 / 100M) with a power of 40 watts. It has H.265+ Compression that Improves Encoding Efficiency up to 75% and Reduces Data torage Costs.Get the confidence that comes with powerful and reliable NVRs. Whether you are installing a new surveillance system or upgrading an existing one, aim for the best with Embedded NVRs.

Environment features NVR support alarm detection VCA and VCA search. The image is displayed on a monitor or TV screen through a connection via HDMI (up to 4K (3840x2160)) and a VGA (1920x1080p) connector. Playback is possible on two channels of 4K format and four channels of 1080p format. To organize storage on board the recorder, there is a slot for connecting a hard disk with an allowable volume of up to six terabytes each. A network connection is made through the gigabit RJ45 port (10M / 100M / 1000M). In support of the whole “arsenal” of network protocols: TCP / IP, DHCP, Morx Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP ™, HTTPS. To supply power, you need an adapter with a working DC voltage of 12 volts.

HD Input

H.265+/H.265/H.264/H.264+ Video Formats

Connectable to the Third-Party Network Cameras

Up to 4 IP Cameras can be Connected

Recording at up to 8 MP Resolution

Supports Live View, Storage, and Playback of the Connected Camera at up to 8 MP Resolution

HD Output

HDMI/VGA Simultaneous Output (MX-D04P1)

HDMI Video Output at up to 4K (3840 × 2160) Resolution

HD Storage

1 SATA Interface Connectable for Recording and Backup

H.265+ Compression Effectively Reduces the Storage Space and Costs up to 75%

HD Transmission

1 Self-Adaptive 10/100/1000 Mbps Network Interface

4 Independent PoE Network Interfaces are Provided

Various Applications

Centralized Management of IP Cameras, Including Conguration, Information Import/Export, Real-Time Information Display, Two-Way Audio, Upgrade, etc.

Connectable to Smart IP Cameras From Morx and the Recording, Playing back, and Backing up of VCA Alarms can be Realized

VCA Detection Alarm is Supported

Instant Playback for Assigned Channel During Multi-Channel Display Mode

Smart Search for the Selected Area in the Video; and Smart Playback to Improve the Playback Efficiency

Morx-Connect for Easy Network Management

Video/Audio Input
IP Video Input 4-ch
Up to 8 MP Resolution
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Incoming Bandwidth 40 Mbps
Outgoing Bandwidth 80 Mbps
Video/Audio Output
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output Resolution 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA Simultaneous Output
VGA Output Resolution 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ; HDMI/VGA Simultaneous Output
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Decoding Format H.265/H.265+/H.264/H.264+/MPEG4
Live View / Playback Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 4-ch
Capability 1-ch @ 8 MP / 4-ch @ 1080p
Network Management
Network Protocols TCP/IP, DHCP, Morx-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk
SATA 1 SATA Interface
Capacity Up to 6TB Capacity for Each Disk
External Interface
Network Interface 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface 2 × USB 2.0
Poe Interface
Interface 4, RJ-45 10/100 Mbps Self- Adaptive Ethernet Interface
Power ≤ 50 w
Standard IEEE 802.3 af/at
Power Supply 48 VDC
Power ≤ 65 w
Consumption(Without Hard Disk) ≤ 10 W (Without Enabling PoE)
Working Temperature -10 to +55º C (+14 to +131º F)
Working Humidity 10 to 90 %
Chassis 1U Chassis
Dimensions(W × D × H) 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight (Without Hard Disk) ≤ 1 kg (2.2 lb)
