MX DB2Z

$81.00 $101.00

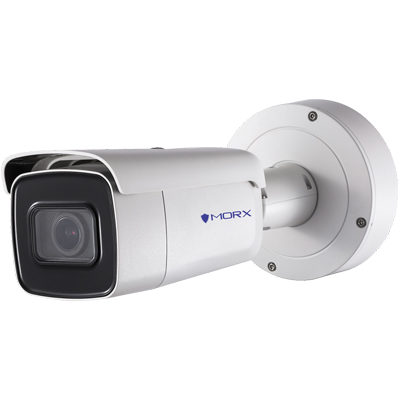

2 MP IR Vari-Focal Bullet Network Camera

It is an 2MP bullet camera from Morx that can record in ultra-low light scenarios by using wide dynamic range and IR LEDs that are effective up to 50m. This camera has on board storage and is available in a range of focal lengths meaning that it is suitable for a variety of applications.

Fitted with IP67 rated weatherproof housing and a range of smart features such as line crossing detection, it is the perfect choice for home and business security.

1/2.8" Progressive Scan CMOS

1920 × 1080@30fps

2.8 to 12 mm Motorized VF Lens

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

H.265+, H.265, H.264+, H.264

Three Streams

120dB WDR

2 Behaviour Analysis, Face Detection

BLC/3D DNR/ROI/HLC

IP67, IK10

Built-in Micro SD/SDHC/SDXC Card Slot, up to 128 GB

3-Axis Adjustment

Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-IRIS No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens
Focal Length 2.8 to 12 mm Motorized VF Lens
Aperture F1.6
Focus Auto
FOV Horizontal FOV: 110° to 31° Vertical FOV: 58° to 18° Diagonal FOV: 136° to 36°
Lens Mount ф14
Ir
IR Range Up to 50 m
Wavelength 850nm
Compression Standard
Video Compression Main  Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supports
H.265 Type Main Profile
H.265+ Main Stream Supports
Video Bit Rate 256 Kbps to 16 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-Set
Behaviour Analysis Line Crossing Detection, Intrusion Detection
Face Detection Yes
Region of Interest 1 Fixed Region for Main Stream and Sub-Stream
Max. Resolution 1920 × 1080
Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR/HLC
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness Adjustable by Client Software or Web Browser
Target Cropping No
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm in
Network
Network Storage Support Micro SD/SDHC/SDXC Card (128G), Local Storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, Video Tampering, Network Disconnected, IP Address Conict, Illegal Login, HDD Full, HDD Error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, TP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key Reset, Anti-Flicker, Three Streams, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Firmware Version V5.5.52
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 Channels
User/Host Up to 32 Users 3 Levels: Administrator, Operator and User
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 Input (line in/mic.in, 3.5 mm), 1 Output (Line out, 3.5 mm), Mono Sound
Communication Interface 1 RJ45 10M/100M Self-Adaptive Ethernet Port
Alarm 1 Input, 1 Output (Max. 12 VDC, 30 mA), Terminal Block
Video Output 1Vp-p Composite Output(75Ω/BNC) (For Adjustment Only)
On-Board Storage Built-in Micro SD/SDHC/SDXC Slot, up to 128 GB
SVC H.264 and H.265 Encoding
Reset Button Yes
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or Less (Non-Condensing)
Power Supply 12 VDC ± 25%, Terminal Block PoE (802.3at, Class 4)
Power Consumption and Current 12 VDC, 1.2A, Max. 14.5W PoE (802.3at, 42.5V to 57V), 0.43A to 0.3A, max. 18W
Protection Level IP67, IK10TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material Metal
Dimensions ф144.13 × 332.73 mm (ф 5.7" × 13.1")
Weight Camera: Approx. 1740 g (3.8 lb.) With Package: Approx. 2610 g (5.8 lb.)
