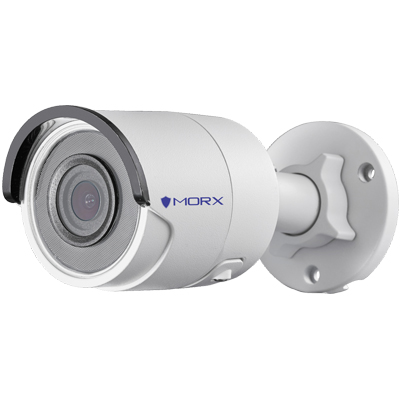

It is an outdoor IR mini bullet camera that produces an exceptional 4MP high-resolution video. Powered by the latest innovation in image sensor technology and ultra high definition image processing chipset, it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. Rigorously tested, Morx next generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a IP camera.
1/3" Progressive Scan CMOS
2688 × 1520 @30fps
2.8/4/6/8 mm Fixed Lens
Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
H.265+, H.265, H.264+, H.264
Three Streams
120dB WDR
2 Behaviour Analysis, Face Detection
BLC/3D DNR/ROI/HLC
IP67
Built-in Micro SD/SDHC/SDXC Card Slot, up to 128 GB
3-Axis Adjustment
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-IRIS | No |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| 3-Axis Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Focal Length | 2.8/4/6/8 mm |
|---|---|
| Aperture | F1.6 |
| Focus | Fixed |
| FOV | 2.8 mm, Horizontal FOV: 103°, Vertical FOV: 58°, Diagonal FOV: 123° 4 mm, Horizontal FOV: 83°, Vertical FOV: 45°, Diagonal FOV: 99° 6 mm, Horizontal FOV: 51°, Vertical FOV: 29°, Diagonal FOV: 58° 8 mm, Horizontal FOV: 39°, Vertical FOV: 22°, Diagonal FOV: 45° |
| Lens Mount | M12 |
| IR Range | Up to 30 m |
|---|---|
| Wavelength | 850nm |
| Video Compression | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264 |
|---|---|
| H.264 Type | Main Prole/High Prole |
| H.264+ | Main Stream Supports |
| H.265 Type | Main Prole |
| H.265+ | Main Stream Supports |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Behaviour Analysis | Line Crossing Detection, Intrusion Detection |
|---|---|
| Face Detection | Yes |
| Region of Interest | 1 Fixed Region for Main Stream and Sub-Stream |
| Max. Resolution | 2688 × 1520 |
|---|---|
| Main Stream | 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) |
| Sub-Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness Adjustable by Client Software or Web Browser |
| Target Cropping | No |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), Local Storage and NAS (NFS,SMB/CIFS), ANR |
|---|---|
| Alarm Trigger | Motion Detection, Video Tampering, Network Disconnected, IP Address Conict, Illegal Login, HDD Full, HDD Error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-Key Reset, Anti-Flicker, Three Streams, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Firmware Version | V5.5.52 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 Channels |
| User/Host | Up to 32 Users 3 levels: Administrator, Operator and User |
| Client | Morx Connect |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Communication Interface | 1 RJ45 10M/100M Self-Adaptive Ethernet Port |
|---|---|
| Video Output | No |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC Slot, up to 128 GB |
| SVC | H.264 and H.265 Encoding |
| Reset Button | Yes |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or Less (Non-Condensing) |
|---|---|
| Power Supply | 12 VDC ± 25%, ф 5.5 mm Coaxial Power Plug PoE (802.3af, Class 3) |
| Power Consumption and | 12 VDC, 0.5A, Max. 6W |
| Current | PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W |
| Protection Level | Ip67 TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Metal |
| Dimensions | Camera: ф 70 × 155.03 mm (ф 2.8" × 6.1") Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7") |
| Weight | Camera: Approx. 420 g (0.9 lb.) With Package: Approx. 700 g (1.5 lb.) |
