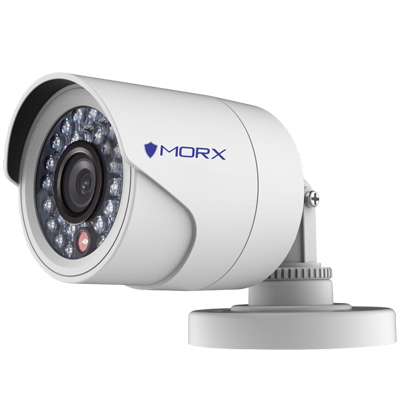

Its a 2.0 Megapixel High-performance CMOS, Analog HD output, up to 1080P resolution, True Day/Night, Smart IR, Up to 20m IR distance, IP66 Weatherproof.
Switchable TVI/AHD/CVI/CVBS, Effective Pixels- 1920 (H) x 1080 (V), Min. illumination- 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR. Signal System – PAL/NTSC.
It can be used with DVR and Can Be Watched Online, its aHigh Quality Branded Product manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field.
2 Megapixel High Performance CMOS
Analog HD Output, 1080p Resolution
Day/Night Switch
Smart IR
Up to 20 m IR Distance
Switchable TVI/AHD/CVI/CVBS
IP66
Camera
| Image Sensor | 2MP CMOS Image Sensor |
|---|---|
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25 (1/30) s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm Fixed Lens |
| Horizontal Field of View | 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm) |
| Lens Mount | M12 |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| Synchronization | Internal Synchronization |
Menu
| AGC | Low/Middle/High |
|---|---|
| Day/Night Mode | Smart/Color/BW(Black and White) |
| Backlight Compensation | Yes |
| DWDR | Yes |
| Language | English, Chinese |
| Functions | Brightness, Sharpness, DNR, Mirror |
Interface
| Video Output | 1 HD Analog Output |
|---|---|
| Switch Button | TVI/AHD/CVI/CVBS |
General
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or Less (Non-Condensation) |
|---|---|
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4 W |
| Ingress Protection | IP66 |
| Material | Plastic |
| IR Range | Up to 20 m |
| Dimensions | ф 70 mm × 154.5 mm ( 2.76" × 6.08") |
| Weight | Approx. 400 g (0.88 lb.) |
