MXH80

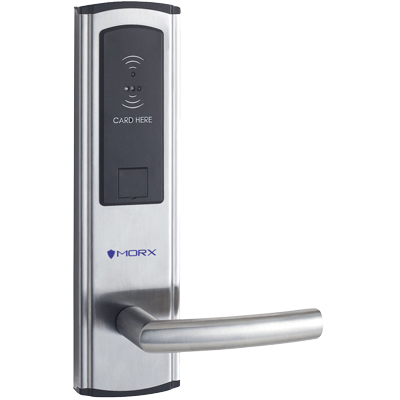

Electronic hotel door lock
Emergency mechanical lock hidden behind a flap on the front. This lock allows to open the door without the need of a card in case of emergency. It will be helpful when the computer is br-oken or the lock in the state of misoperation.

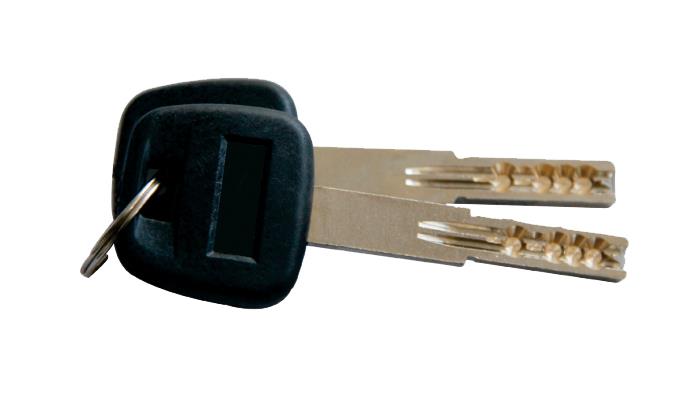

Key-alike type and key-different type are optional.
Interior anti-panic latch. It retracts automatically when the door is opened from the inside.
If the battery power is running low, an automatic alert is activated via a red light that is displayed when reading keycard. This signal is given months before the battery needs to be replaced.
| Material | Stainless Steel |
|---|---|
| Finish | Stainless Steel Brushed/Gold |
| Power Supply | 4 AA Alkaline Batteries |
| Battery Life | Over 15000 Cycles |
| Static Current | < 20 uA |
| Dynamic Current | < 150 ma |
| Storage Temperature | -25- + 58.C |
| Storage Humidity | 15-90% RH |
| Working Temperature | -25- + 58.C |
| Working Humidity | 15-90% RH |
| Card Reading Distance | 0-5cm |
| Reading & Writing Time | < 0.25s |
| Date Keeping | Over 10 Years |
| Applicable Chip | Mifare 1 (13.56Mhz) |
Get the latest downloads includes software & drivers upgrades.
Download DriversElectronic lock with Japanese "MABUCHI" motor durable for over 500, 000 cycles.
ANSI high security bolt with 3-point latch with anti-friction and anti-card mechanism in stainless steel.
Anti-manipulation handle with free rotation, avoid forcing the opening lever.
Ideal to replace old locks. It covers the brands of many models of locks on the market.
Audit system with capacity to register up to 1000 events including openings with emergency keys.
PCB sealed with silicon encapsulated treatment for high humidity environments.
Software available in several languages. Standalone mode or centralized database.
Mechanical emergency lock EEPROM memory to maintain the information and configuration even if the batteries are removed.
Uses 4 standard AA batteries.
