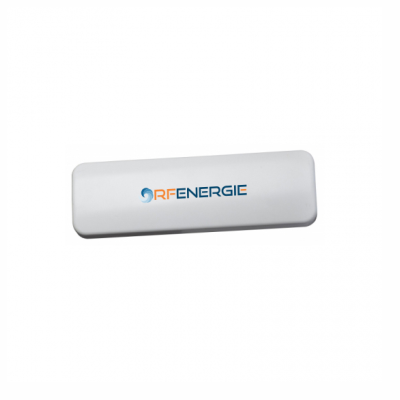

Specialized original appearance designed for Vehicle management, Linear polarization,high-end UHF RFID Antenna, high gain but low standing-wave ratio brings best performance. Engineering plastic housing, rugged construction, high protection level for wide using with our split-type fixed reader, such as ETC, parking management, intelligent traffic management, vehicle tracking, traffic analysis etc.
Low profile with high gain, reading distance range up to 20m
Maximum efficiency and performance across the entire frequency band
Seamlessly compatible with different brand RFID readers
Characteristics
| Dimensions (L x W x D) | 600mm×180mm×55mm |
|---|---|
| Weight | 0.6KG |
| Radome Material | Aluminum +ABS |
| Sealing | IP66 |
| Connector type / position: | N female or Customizable |
| Mounting | Bracket |
| Operating Temperature | -40 - +85°C |
| Storage Temperature | -40 - +85°C |
Electrical Specifications
| Frequency Range | 840MHz～960MHz |
|---|---|
| Polarization | Horizontal |
| Far-Field Gain | 12 dBi |
| H side Beamwidth | 50° |
| E side Beamwidth | 70° |
| Typical VSWR | VSWR≤1.3 |
| Nominal Impedance | 50 (Ω) |
| Maximum Input Power | 100W |
| Lightning Protection | DC to ground |
Applications
| Widely used in ITS / ETC, access control, vehicle management ,etc. |
