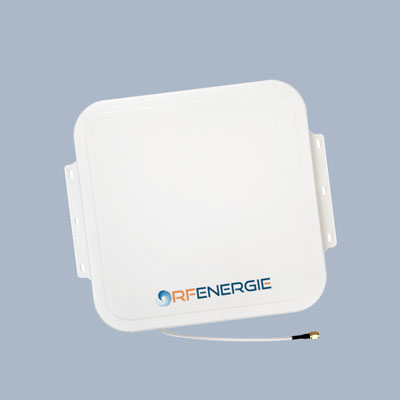

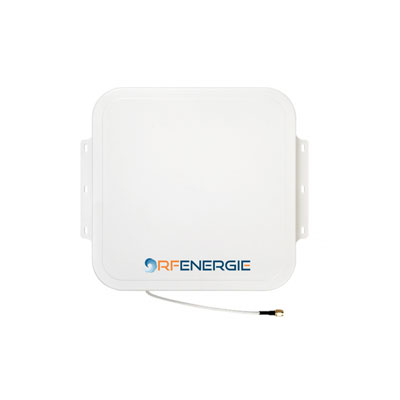

RFG-HA15 is small in size and packed in a highly rugged housing, which is quite easy to install. With 9dBi power gain, RFG-HA15 is newly designed long-range UHF RFID antenna, suitable for RFG-HC04 series UHF RFID reader, and widely used in warehouse, factory, retail store, parking lot, etc.
Powerful: Max RFID performance and reading distance up to 20m
Advanced: Excellent multi-tag reading function, >400 time each second
Humanized: Small size, 6 hangers for easy installation
Wide using: Best for long reading distance application such as warehousing, logistic, production, and yards
Characteristics
| Frequency | 840-960MHz Adjustable |
|---|---|
| Gain | 9 dBi |
| “H” Beam Angle | 70° |
| “E” Beam Angle | 70° |
| Front-Back | ≥20 dB |
| Polarization | Right Circular or Left Circular |
| Impedance | 50 (Ω) |
| VSWR | < 1.3:1 |
| Maximum Input Power | 10W |
| Connector | SMA- 50KFD female or Customizable |
| IM.3rd Order(2x43dBm) | -- |
| Lightning Protection | DC to Ground |
Physical
| Size | 274mm×243.8mm×31.6mm |
|---|---|
| Weight | 600g |
| Housing Material | Aluminum + Engineering Plastic ASA |
| Protection Level | IP4X |
| Storage Temperature | -20 ~+ 75℃ |
Operational Environment
| Working Temperature | -30 - +70°C |
|---|---|
| Storage Temperature | -40 - +85°C |
| Atmospheric Pressure | 86kPa ~ 108kPa |
| Relative Humidity | 5%-95% RH Non condensing |
