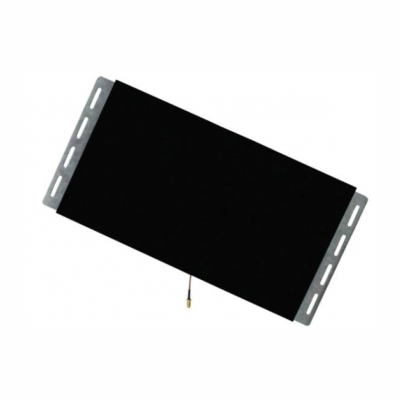

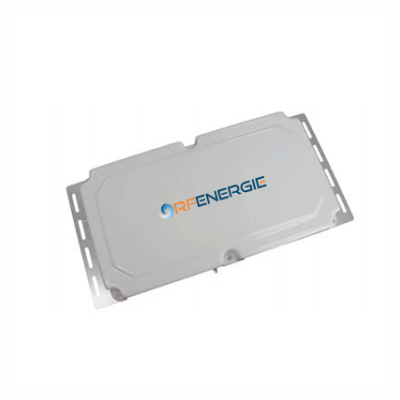

Narrow beam antenna for access control gate reader, suitable for UHF band RFID antenna terminal general case, the directional narrow beam, high gain characteristics. And Mechanical Properties:Suitable for all occasions, access control, fleet management and other uses.
Low profile with high gain, reading distance range up to 20m
Maximum efficiency and performance across the entire frequency band
Seamlessly compatible with different brand RFID readers
Characteristics
| Dimensions (L x W x D) | 460 mm×220mm×35 mm |
|---|---|
| Weight | 4.3KG |
| Radome Material | Aluminum +ABS |
| Sealing | IP66 |
| Connector type / position: | SMA- male or Customizable |
| Mounting | Flush |
| Operating Temperature | -40 - +85°C |
| Storage Temperature | -40 - +85°C |
Electrical Specifications
| Frequency Range | 865MHz ~ 868MHz, 902MHz ~ 928MHz |
|---|---|
| Polarization | Narrow BeamCircular |
| Far-Field Gain | 10 dBi |
| Typical VSWR | VSWR≤1.3 |
| Nominal Impedance | 50 (Ω) |
| Maximum Input Power | 10W |
Applications
| Widely used in ITS / ETC, refrigerator, smart shelf, access control, retail shop, file cabinet etc. |
