UHF RFID reader with the best price/performance ratio. It adopts Impinj INDY R2000 high performance RFID chip, under the premise of meeting the high performance of RFID, which streamlines some uncommon functions to meet most of the RFID application scenarios.
Powered by Impinj R2000 chipset for maximum tag detection performance.

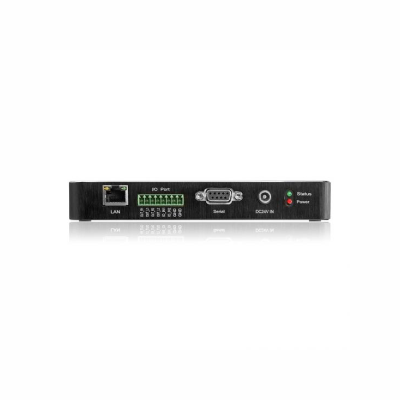

Kinds of communication interfaces: RJ45、RS22
Industrial, installation-friendly I/O connector
Support RSSI, antenna detection, online update
RSSI & speed filters
SDK and Firmware Management
| Air Protocol | Demo software |
|---|---|
| API Support | Windows platform– .Net / .Net core / C++ / Java SDK |
| Android platform - Java | |
| Linux platform – Java SDK |
Physical Characteristics
| Dimensions | 170mm×120mm×25mm |
|---|---|
| Weight | 0.5Kg |
| Housing Material | aluminum |
| Visual Status Indicators | Power/Status |
RFID Characteristics
| Air Protocols | ISO/IEC18000-6B, 6C / EPC C1Gen2 C2GEN2 optional |
|---|---|
| Frequency | CHN：920MHz～925MHz (CMII) |
| USA: 902 MHz-928MHz (FCC part 15) | |
| EU：865MHz～868MHz (ETSI EN 302208) | |
| Output Power | 0dBm-30dBm (±1dBm) adjustable |
| Channel bandwidth | ＜200KHz |
| Frequency stability | ≤±10ppm |
| Peak Inventory Speed | > 400 tags/sec |
| Anti-collision | Support multi-tag / intensive inventory |
| Work Mode: | Fixed/hop frequency optional |
Connectivity
| Communications | Rj45, RS-232 |
|---|---|
| General Purpose I/O | 2 inputs(DC 0~24V), 2 outputs(DC_MAX:30V,2A; AC_MAX:125V,0.3A), optically isolated (Terminal Block) |
| Power supply | DC 24V/2.5A(Output power 30dBm, power consumption 8W） |

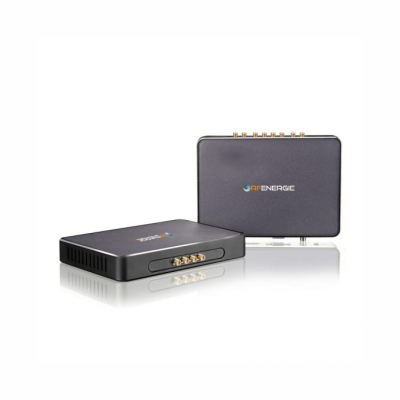

| Antenna Ports | 4 / 8 SMA ports; circular or linear polarization; near and far field compatible |
Environmental
| Operating Temp. | -20 - +70°C |
|---|---|
| Storage Temp. | -40 - +85°C |
| Humidity | 5-95% non-condensing (+25℃) |
| Sealing | IP53 |
