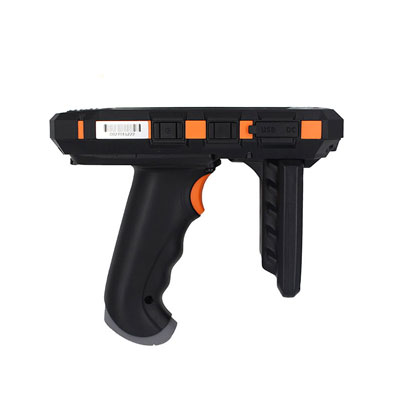

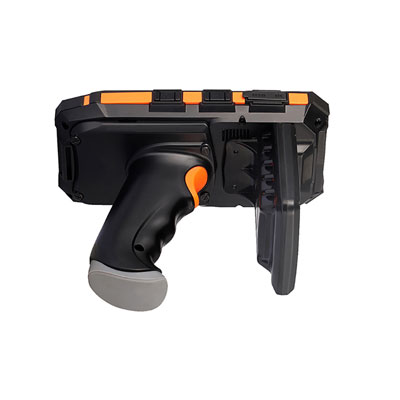

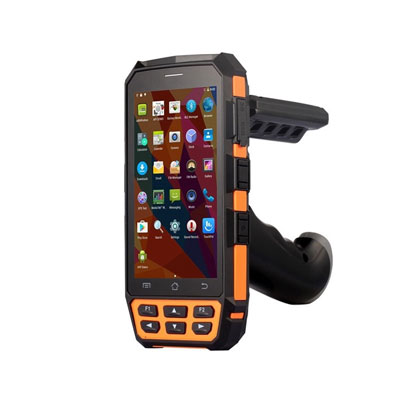

MPOWER100 serial products extend Handheld-Wireless product serials into Android OS 7.0 with 4G high-speed network communication with a pistol grip. Inside the compact handheld device, sealing level of IP65 water/dustproof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, quick- charging technology, large built-in battery of 8100mAh, and 5.0-inch tough Gorilla Glass 3 9H screen are all equipped to ensure high performance. The latest 1.3GHz quad-core processor, 2GB RAM/16GB ROM, and up to 32GB expansion are all designed to boost up experience level.
Extremely Stable Performance
Android 7.0 OS with the memory of 2GB RAM/16GB ROM can provide a high standard experience
High-Speed Data Communication
Double insurance of 4G high-speed network and dual-frequency WIFI network can ensure real-time data communication in the different using environment
Rugged Ergonomic, Over-Molding Design with Extremely Stable Hardware Display
Over-molding, ergonomic hardware design and 5.0-inch tough Gorilla Glass 3, 9H can satisfy most of the tough environment from different fields
High-Efficiency Operating Style
Mounted pistol grip with a built-in battery of 8100mAh can ensure the high efficiency in outdoors environments
High Accuracy and Long Reading Distance
Optional ThingMagic UHF Reader can guarantee high reading accuracy and long reading distance
Highly Customized Structure
‘All-in-One’ hardware design conception can expand the hardware modules integration based on different project requirements, especially like UHF+HF, UHF+LF; HF+LF
Quick-Charging
Quick-charging technology can provide the most efficient experience
Perfect Service
Professional and skillful service involving the whole life cycle can guarantee the stability
| Dimension | 170mm(H)x85mm(W)x23mm(D)±2 mm |
|---|---|
| Display | 5.0 Inch Gorilla Glass 3 9H TFT-LCD (720x1280) Touch Screen with Backlight |
| Backlight | LED Backlight |
| Keypads | 3 TP Keys, 6 Function Keys, 4 Side Buttons |
| Expansions | 2 PSAM, 1 SIM, 1 TF |
| Battery | Rechargeable Li-ion Polymer, 3.7V, 8100mAh |
| CPU | Quad A53 1.3GHz Quad-core |
|---|---|
| Operating System | Android 7.0 |
| Storage | 2GB RAM, 16GB ROM, MicroSD (Max 128GB Expansion) |
| Operating Temperature | -20℃ to 50℃ |
|---|---|
| Storage Temperature | -20℃ to 70℃ |
| Humidity | 5%RH to 95%RH (Non-condensing) |
| Drop Specifications | 5ft./1.5 m Drop to Concrete across the Operating Temperature Range |
| Sealing | IP65, IEC Compliance |
| ESD | ±15kv Air Discharge, ±8kv Direct Discharge |
| SDK | Handheld-Wireless Software Development Kit |
|---|---|
| Language | Java |
| Environment | Android Studio or Eclipse |
| WWAN | TDD-LTE Band 38, 39, 40, 41;FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; |
|---|---|
| WCDMA(850/1900/2100MHz); | |
| GSM/GPRS/Edge (850/900/1800/1900MHz); | |
| WLAN | 2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n |
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
| GPS | GPS (Embedded A-GPS), Accuracy of 5 m |
| Resolution | 8.0 Megapixel |
|---|---|
| Lens | Auto-Focus with LED Flash |
