$81.00 $101.00

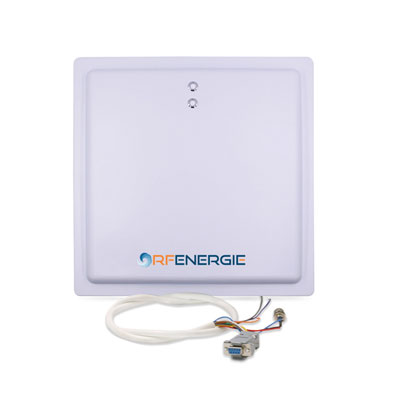

UHF Integrated Reader

RFG-CR32L is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit, and industrial production process control system.

Self-intellectual property

Size - 445mmx445mmx55mm

Supports ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag

865~868MHz, 902~928MHz frequency band(frequency customization optional)

FHSS or fix frequency transmission

RF output power up to 30dbm (adjustable)

12dbi antenna optional with effect distance up to 10m~20m*

Supports auto-running, interactive and trigger-activating work mode

Low power dissipation with single +9 DC power supply

Supports RS232, RS485, Wiegand TCP/IP interface

Dimension 445mmx445mmx55mm
Weight 3.55kg
User Environment
Operating Temperature -10 ~+ 55℃
Storage Temperature -20 ~+ 75℃
Communications RS232, RS485, TCP/IP, WIFI (Optional)
Output Wiegand
Power Supply 9V DC
Frequency 865~868MHz, 902~928MHz Frequency Band (Frequency Customization Optional)
Protocol ISO18000-6B, ISO18000-6C(EPC C1G2)
Read Range 12m~15m (Depend On Tag)
Work Mode Active Mode, Trigger Mode and Answer Mode (Optional)
Antenna Power 12dbi Linear Antenna
Output Power Up to 26dbm (Adjustable)
