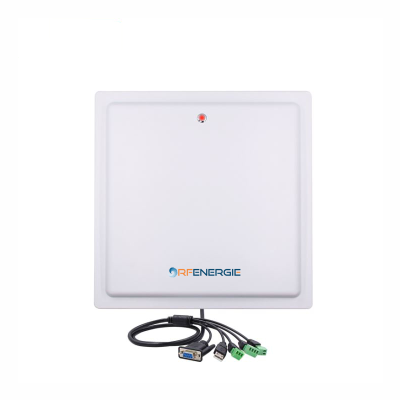

RFG-CR32 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit, and industrial production process control system.
Self-intellectual property

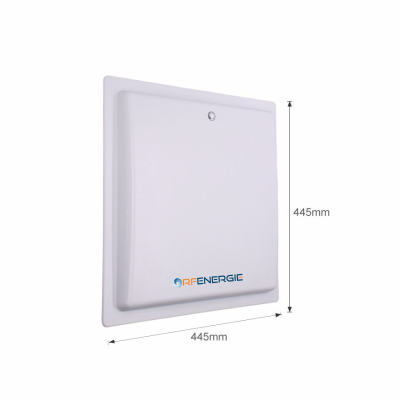

Size - 445mmx445mmx55mm
Supports ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag
865~868MHz, 902~928MHz frequency band(frequency customization optional)
FHSS or fix frequency transmission
RF output power up to 30dbm (adjustable)
12dbi antenna optional with effect distance up to 10m~20m*
Supports auto-running, interactive and trigger-activating work mode
Low power dissipation with single +9 DC power supply
Support RS232,USB,WG26,RELAY
| Dimension | 445mmx445mmx55mm |
|---|---|
| Weight | 3.55kg |
| Operating Temperature | -10 ~+ 55℃ |
|---|---|
| Storage Temperature | -20 ~+ 75℃ |
| Communications | RS232, RS485, TCP/IP, WIFI (Optional) |
|---|---|
| Output | Wiegand |
| Power Supply | 9V DC |
| Frequency | 865~868MHz, 902~928MHz Frequency Band (Frequency Customization Optional) |
|---|---|
| Protocol | ISO18000-6B, ISO18000-6C(EPC C1G2) |
| Read Range | 12m~15m (Depend On Tag) |
| Work Mode | Active Mode, Trigger Mode and Answer Mode (Optional) |
| Antenna Power | 12dbi Linear Antenna |
| Output Power | Up to 26dbm (Adjustable) |
