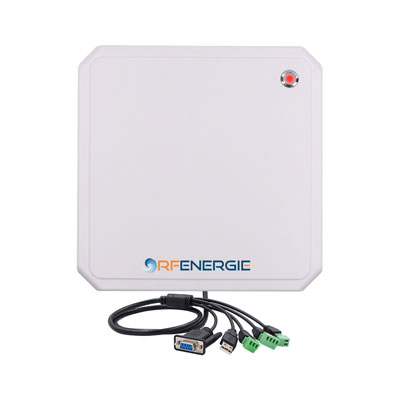

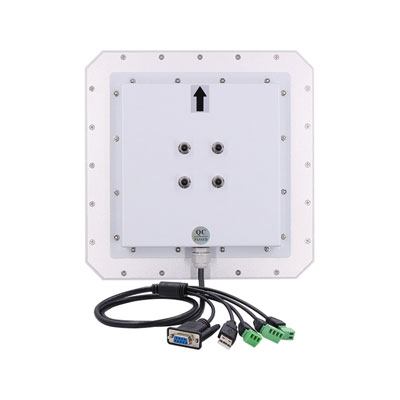

RFG-CR33 is a high-performance UHF RFID integrated reader. It is designed upon the fully self-intellectual property. Based on a proprietary efficient DSP algorithm, it supports fast tag read/write operation with a high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit, and industrial production process control system.
Automatic Scan COM-Port / Network
Supported Firmware Upgrade
Support Export Config / Import Config
Multiple Country Languages
Global Frequency (860~960MHz )
Password Mode
Read Specify Tag
Relay
Data Cache
Multiple Customizable Communication Protocols
Remote Listening
RSSI
Characteristics
| Frequency | USA: 902 MHz-928MHz,EU: 865-868MHz |
|---|---|
| Protocol | 15018000-6B-6C ( EPC C1Gen2) |
| Built-in Antenna | 7 dbi Circular Antenna |
| Work Mode | Active, Trigger, Password; Answer Mode (Optional) |
| RF Power | 26 dbm Adjustable |
| Read Distance | 6-8 (Depends on Tag ) |
| Interface | RS232.USB.WG26, Relay TCP/IP, POE, WIFI (Optional) |
| Power Supply | 9-30 V |
| Reader Size | 260*260*60mm |
| Net Weight | 1.2Kg |
| Operating Temperature | -10 - +55˚C |
| Storage Temperature | -20 - +75˚C |
