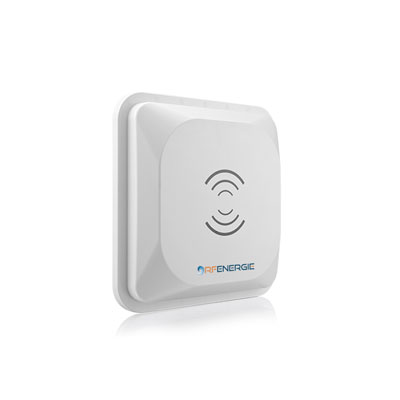

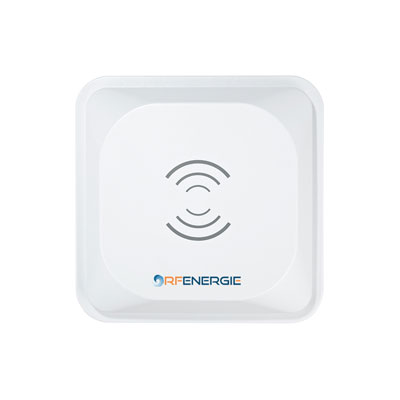

UHF READER is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit, and industrial production process control system.
Impinj Indy R2000 chipset / Phychips PR9200 offer different cost performances
Aluminum casting / waterproof housing applies to all-weather industrial scenarios
Various communication / software interfaces help faster application of the system
Different developing languages SDK meet different developer needs
Excellent communication protocol architecture supports faster data processing algorithm
Integrated design supports better deploy /installation / engineering / wiring
Special application projects customized interfaces / data transferring prolongable
Seamlessly compatible with RFID middleware for rapid implementation of large projects
Widely used in E-parking, garbage truck, feeding vehicle, AGV, access control, and so on
| Air Protocol | ISO/IEC18000-6B, 6C / EPC C1Gen2 |
|---|---|
| Chipset | IMPINJ Indy R2000 |
| Frequency | USA: 902 MHz-928MHz (FCC part 15) |
| EU: 865-868MHz (ETSI EN 302208) | |
| CN: 920-925MHz, CMIIT) | |
| Supportable / Optional: Russian / Japan / Korea / Malaysia / Thailand / other Customizable | |
| Output Power | 0dBm-30dBm |
| Reading Range | 0-15m (According to Tag & Environment) |
| Channel Bandwidth | ＜200KHz |
| Anti-Collision | RSSI / Multi-tag / Intensive Inventory Supportable |
| Work Mode | Fixed / Hop Frequency Optional |
| Antenna | 9dBi Bulit-in Circular Polarization |
| Phychips | PR9200 |
| Processor | ARM9, 400MHz |
|---|---|
| Memory | Flash 128MB; DRAM 32 MB |
| Operating System | Linux 2.6 |
| Firmware Upgrade Method | Demo Software / Telnet |
| Function | Automatic Reading/ White List |
|---|---|
| Data Mode | Breakpoint Resume / Match Reading / Data filter |
| Format | Data Format Customizable (PLC / Modbus Compatible) |
| Service | RF Micron / EM Temperature Sensor Custom Services |
| Dimensions | 290mm(L)*290mm(W)*55mm(H) |
|---|---|
| Weight | 1.6Kgs |

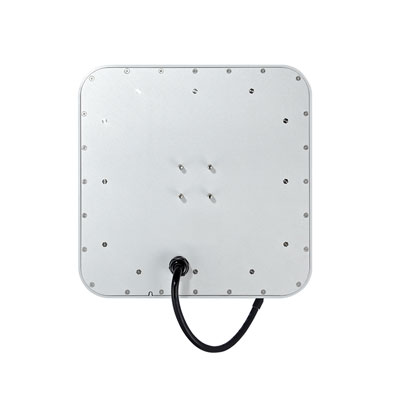

| Housing Material | Aluminium Plate / ABS Cover |
| Communications | RJ45, RS-232, RS-485, Wiegand |
|---|---|
| General Purpose I/O | 1 Input, 1 Pair 5V Output or Wiegand Output |
| Power Supply | DC 24V/2.5A (DC 9V ~ 30V,60W) |
| Operating Temperature | -20 - +70°C |
|---|---|
| Storage Temperature | -40 - +85°C |
| Humidity | Humidity：5-95% Non-condensing (+25℃) |
| Sealing | IP66 |
