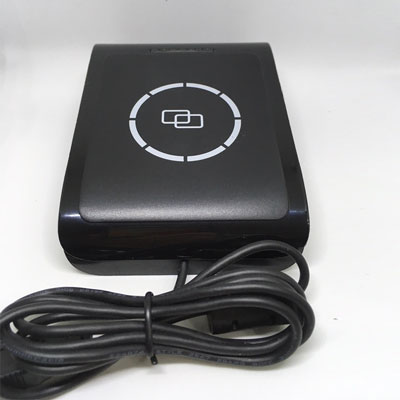

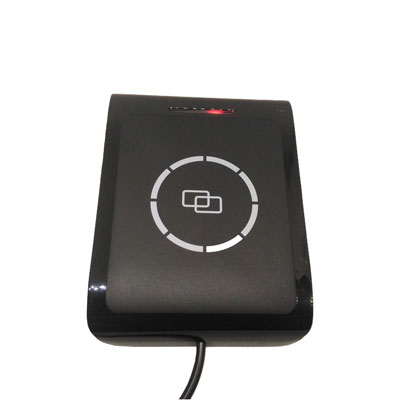

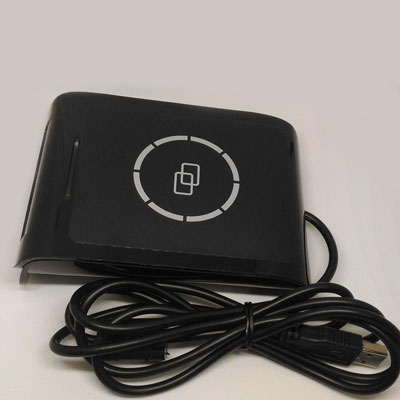

With the function as USB Interface, Desktop Reader RFG-WD01 series offers a read / write function, which is applicable for — Point of Sales / Registration / Inventory Management for Window, iOS, Android, and Linux.
Frequency: TW 922-928MHz/EU 865-868MHz/
USA 902-928MHz/CN 920-925MHz
JP 916-921MHz/KR 917-921MHz
Protocols: EPC C1G2 ISO 18000-6C
Characteristics
| API Support | Window, iOS, Android, Linux |
|---|---|
| Protocols | EPC C1G2 ISO 18000-6C |
| Dimensions | 70mm X 112mm X 23mm |
| Housing Material | Plastic |
| Frequency | TW 922-928MHz/EU 865-868MHz/ |
| USA 902-928MHz/CN 920-925MHz | |
| JP 916-921MHz/KR 917-921MHz | |
| Output Power | -2dBm-18dBm |
| Reading Range | Up To 25cm |
| Interface | USB-Keyboard Emulator / HID/USB CDC (Visual Serial Port), Option for RS232/UART in TTL leve l/ I2C |
| Power Supply | USB Port (3-7 VDC) |
| Operating Temperature | 0°C to +50°C (+32°F to +122°F) |
