MIQ 04

$81.00 $101.00

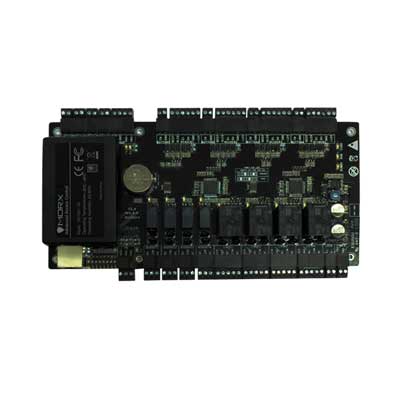

4-Door Access Control IP-Based Control Panel

MIQ-04 is built on flexible, open technology to provide management, real-time monitoring, and control of your access control system all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. MIQ-04 versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. MIQ-04 can communicate at 38.4 Kbps via RS- 485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.

Body
Battery Inbuilt Battery Back-up
Functionality
Fingerprint Capacity 1000
ID Card Capacity 10,000 Proximity card
Logs capacity 100000
Face capacity NA
Technicle Specification
Access Control Interface Electric Lock, Exit Button
Software PayTime / Minop
Power supply DC12V 1.5A
Working temperature 0°C ~ 45°C
WLAN Wi-Fi (Optional)
Slots USB
Technology TCP/IP, USB-host
Dimensions 185×140×30 mm
Regulatory and certificates CE, FCC, RoHS
Relative Humidity 20% ~ 80%
Mode of Verification Fingerprint, Card
Card Reader Integrated Mifare Contactless card reader (upto 4k)
Standard Fuction Workcode, SMS, DLST, Self-Service Query, T9input, SSR report, Automatic Status Switch , 9 digit User ID
CPU 324MHz
