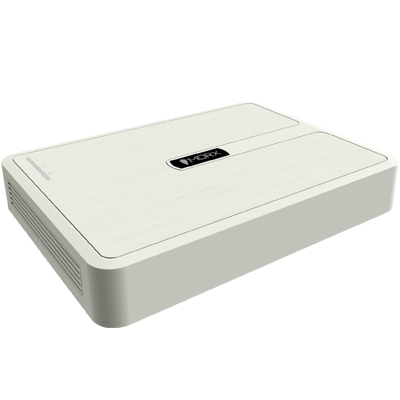

Captured video is only as good as the devices that store it and play it back and can handle 8 channel simultaneously. It has H.264+ Compression that Improves Encoding Efficiency up to 50% and Reduces Data Storage Costs.Don’t take chances with inferior video recording devices. Get the confidence that comes with powerful and reliable NVRs. Whether you are installing a new surveillance system or upgrading an existing one, aim for the best with Embedded NVRs.
Environment features NVR support alarm detection VCA and VCA search. The image is displayed on a monitor or TV screen through a connection via HDMI (up to 4K (3840x2160)) and a VGA (1920x1080p) connector. Playback is possible on two channels of 4K format and four channels of 1080p format. To organize storage on board the recorder, there is a slot for connecting a hard disk with an allowable volume of up to six terabytes each. A network connection is made through the gigabit RJ45 port (10M / 100M / 1000M). In support of the whole “arsenal” of network protocols: TCP / IP, DHCP, Morx Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP ™, HTTPS. To supply power, you need an adapter with a working DC voltage of 12 volts.
Connectable to the Third-Party Network Cameras
Up to 8 Network Cameras can be Connected
H.264+ Compression Effectively Reduces the Storage Space and Costs up to 50%
Full Channel Recording at up to 4 MP Resolution
HDMI/VGA Output at 1080p Resolution
2-ch Playback at 4 MP Resolution or 4-ch at 1080p Resolution
1 SATA Hard Disk can be Connected with 6TB Capacity
HDD Quota Management : Different Capacity can be Assigned to Different Channel
Supports Line Crossing Detection and Intrusion Detection
Smart Search for the Selected Area in the Video; and Smart Playback to Improve the Playback Efficiency
One-key Operation : Automatically Search, Modify and Add IP Cameras After Device is Activated
100 Mbps Ethernet Network Interface
| IP Video Input | 8-ch |
|---|---|
| Two-Way Audio Input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Incoming Bandwidth | 60 Mbps |
|---|---|
| Outgoing Bandwidth | 40 Mbps |
| Remote Connection | 64 |
|---|---|
| Recording Resolution | 4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF |
| HDMI/VGA Output | 1-ch, Resolution: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) |
| Live View/Playback Resolution | 4 MP/3 MP/1080p/1.3 MP /UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF |
|---|---|
| Capability | 2-ch@4 MP, 4-ch@1080p |
| SATA | 1 SATA Interface for 1 HDD |
|---|---|
| Capacity | Up to 6TB for Each Disk |
| Network Protocols | TCP/IP, DHCP, Morx-Connect, DDNS, NTP, SADP, SMTP, UPnP™ |
|---|
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
|---|---|
| USB Interface | 2 × USB 2.0 |
| Power Supply | 12 VDC |
|---|---|
| Consumption(Without Hard Disk and PoE) | ≤ 18 w |
| Working Temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Working Humidity | 10 % to 90 % |
| Dimensions (W × D × H) | 200 × 205 × 48 mm (7.9" × 8.1" × 1.9") |
| Weight (Without Hard Disk) | ≤ 1 kg (2.2 lb) |
