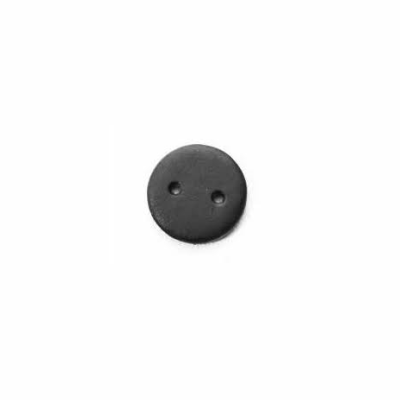

HF-16mm-Laundry-Tag-with-Hole

$81.00 $101.00

UHF RFID Tag

Tracking of garments in the textile rental and dry Cleaning. The Laundry Tag provides immediate and long term benefits to garment management in process and lifecycle traceability. Automatically reading of garments and provide a durable tag that could survive multiple washings

Chip Type:
I-Code SLIX 13.56 MHz, ISO/IEC 15693
1024 bits, organized in 32 blocks of 4 bytes each
Data retention of 50 years
Write endurance 100,000 cycles
Mechanical:
Outer Dia. 15.8mm
Thickness 2.85mm
Hole Dia. 1.5mm x 2
Material High Temp Plastic
Colour Black
Weight 0.9 g
Stability Isostatic water pressure 30 bar
Antenna Type Wire Antenna
Electrical:
Operating Frequency 13.56 MHz
Operating mode Passive (battery-less transponder)
Ingress Protection:
Ip68
Thermal:
Storage Temp. -40°C to +120°C, (+160°C for 50 min., +220°C for 50 sec.)
Operating Temp. -25°C to +85°C
Options:
Available with Other IC type, Size, Shape & Colour on request
