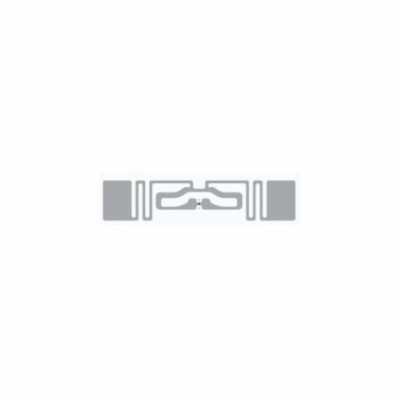

Manufactured using inlays from Avery Dennison, which provide maximum performance on a given footprint of 70 x 14.5 mm. Leveraging the capabilities of NXP’s UCODE 8 chip, the Gen2 UHF RFID inlays are suitable for an array of RFID applications that can improve supply chain visibility and inventory management. It has features a 128-bit EPC memory and a 96-bit unique factory-locked TID number. Also, a 48-bit unique serial number is factory-encoded into the TID. Delivery formats include dry, wet, and pressure-sensitive labels.
PHYSICAL CHARACTERISTICS:
| Inlay size | 74mm X 18mm |
|---|---|
| Label size (customizable) | 74X20/100X25/100X50 mm |
| Adhesive | Acrylic |
| Delivery format | Reel |
| No. of labels/Reel | 5,000 pcs/reel |
| Core Inner diameter | 76 mm / 3 in |
| Available face material | PET/Paper |
ENVIRONMENTAL RESISTANCES:
| Operating temp. | -40 °C to 85 °C |
|---|---|
| -40 °F to 185 °F | |
| Relative humidity | 5-95% Condensing |
| UV Resistant | No |
PERSONALIZATION OPTIONS:
| Encoding | Possible |
|---|---|
| Customized printing | Possible |
RFID SPECIfiCATIONS:
| Operating mode | Passive |
|---|---|
| Frequency Band | UHF 860 - 960 MHz |
| RF protocol | EPC class 1 Gen 2 |
| IC | NXP UCODE 8 |
| Functionality | Read/Write |
| EPC memory | 128-bit |
| TID memory | 96-bit/48 bit Unique |
| User memory | serial number |
| Web Width | NA |
| Access password | 76 mm / 3 in |
| Kill password | 32 bit |
| Write cycle endurance | 2,00,000 cycles |
| Read range | Upto 7 meters |
| Tamper proof | No |
| RoHs | EU Directive 2011/65/EC & Directive (EU) 2015/863 |
