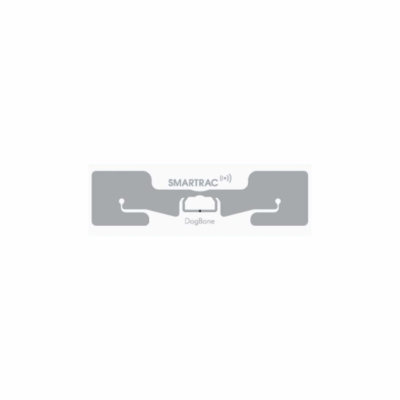

Inlays and labels are made using Smartrc Dogbone dry inlays, specially designed for global supply chain, industrial, RTI applications & windshield labels. They offer superior tamperevident features and have excellent performance in demanding environments across materials. Inlays and tags have a good tolerance to the detuning effect of high dielectric materials, providing effective performance even on difficult-to-tag materials. They are available with the NXP UCODE G2iM chip that offers 256 bits of EPC memory. The inlay is size-optimized for 100 mm/4 inch wide converted labels and are available in dry, wet, and label/sticker delivery formats.
PHYSICAL CHARACTERISTICS:
| Inlay size | 97 X 27 mm |
|---|---|
| Label size | 100X50, 100X30 mm |
| Adhesive | Acrylic |
| Delivery format | Reel |
| No. of labels/Reel | 5,000 pcs /reel |
| Pitch | 30 mm / 1.181 in |
| Core Inner diameter | 76 mm / 3 in |
| Available face material | PET/Paper |
ENVIRONMENTAL RESISTANCES:
| Operating temp. | -40 °C to 85 °C -40 °F to 185 °F |
|---|---|
| Relative humidity | 5-95% Condensing |
| UV Resistant | No |
PERSONALIZATION OPTIONS:
| Encoding | Possible |
|---|---|
| Customized printing | Possible |
RFID SPECIfiCATIONS:
| Operating mode | Passive |
|---|---|
| Frequency Band | UHF 860 - 960 MHz |
| RF protocol | ISO 18000-6C, EPC Class 1 Gen 2 |
| IC | NXP UCODE G2iM |
| Functionality | Read/Write |
| EPC memory | 256 bits/ up to 448 bit |
| TID memory | 96 bit |
| User memory | 640 bit |
| Web Width | 100 mm / 3.937 in |
| Access password | 32 bit |
| Kill password | 32 bit |
| Write cycle endurance | 2,00,000 cycles |
| Read range | up to 15 meters |
| Tamper proof | Security cut/TE |
| RoHs | EU Directive 2011/65/EC and Directive (EU) 2015/863 |
