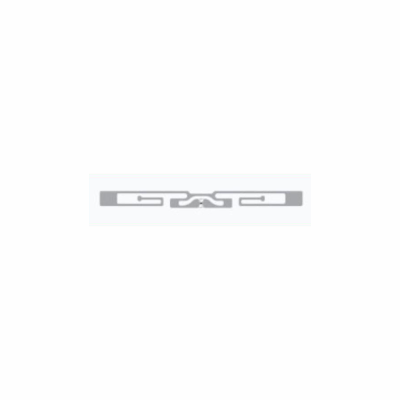

RFG-98*12mm inlays are high-performing, Gen2 UHF RFID products that are available in two chip formats: Monza R6. These inlays have various RFID tagging applications, including supply chain, inventory and logistics, apparel and itemlevel retail, and returnable transport units (RTUs). It’s made using Avery Dennison dry inlay, manufactured as per the industry’s highest quality standards, confirmed by the RFID Lab at Auburn University. The inspection body awarded Avery Dennison its first comprehensive and significant ARC accreditation for quality.
PHYSICAL CHARACTERISTICS:
| Inlay size | 98 mm X 12 mm |
|---|---|
| Label size | 100X25/100X50 mm |
| Adhesive | Acrylic |
| Delivery format | Reel |
| No. of labels/Reel | 10,000 pcs/reel |
| Pitch | 15.875 |
| Core Inner diameter | 76 mm / 3 in |
| Available face material | PET/Paper |
ENVIRONMENTAL RESISTANCES:
| Operating temp. | -40 °C to 85 °C -40 °F to 185 °F |
|---|---|
| Relative humidity | 5-95% Condensing |
| UV Resistant | No |
PERSONALIZATION OPTIONS:
| Encoding | Possible |
|---|---|
| Customized printing | Possible |
RFID SPECIfiCATIONS:
| Operating mode | Passive |
|---|---|
| Frequency Band | UHF 860 - 960 MHz |
| RF protocol | ISO/IEC 18000-63 Type C |
| IC | Impinj Monza R6 |
| Functionality | Read/Write |
| EPC memory | 96-bit and n/a |
| TID memory | 96-bit/48 bit Unique serial number |
| User memory | N/A |
| Web Width | 105 mm / 4.125 in |
| Access password | N/A |
| Kill password | N/A |
| Read range | Up to 6 meters |
| Tamper proof | No |
| RoHs | EU Directive 2011/65/EC and Directive (EU) 2015/863 |
