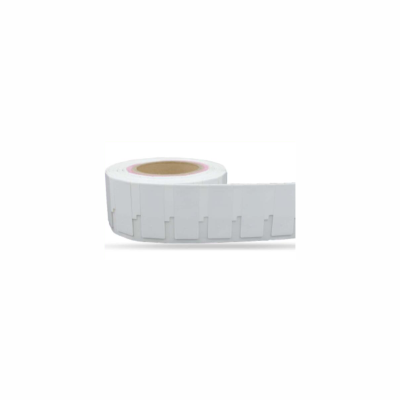

RFG Mount on metal label is a specially designed mount metal label, which can be affixed to metallic assets easily. It works easily even when the surfaces are irregular or uneven. It has good performance on a metal surface, IT products, printing, and encoding can be done by RFID printer.
PHYSICAL CHARACTERISTICS:
| Inlay size | PET |
|---|---|
| Label size (customizable) | 60 mm X 25 mm |
| Adhesive | 3M |
| Delivery format | Reel |
| No. of labels/Reel | 1,000 pcs /reel |
| Core Inner diameter | 76 mm |
| IP Rating | Ip68, test for 5 hours at 1m deep water |
ENVIRONMENTAL RESISTANCES:
| Operating temp. | -40 °C to 85 °C -40 °F to 185 °F |
|---|---|
| Relative humidity | 5-95% Non-Condensing |
| UV Resistant | No |
PERSONALIZATION OPTIONS:
| Encoding | Possible |
|---|---|
| Customized printing | Possible |
RFID SPECIfiCATIONS:
| RFID SPECIfiCATIONS | Passive |
|---|---|
| Frequency Band | 865-867 Mhz |
| RF protocol | EPC class 1 Gen 2 |
| IC | Impinj Monza R6-P |
| Functionality | Read/Write |
| EPC memory | 128(96)bits |
| TID memory | 48-bit unique serial number |
| User memory | 32 bit |
| Access password | Access/Kill short-range mode |
| Kill password | Access/Kill short-range mode |
| Write cycle endurance | 2,00,000 cycles |
| Read range | Up to 4 meters |
| Tamper proof | No |
