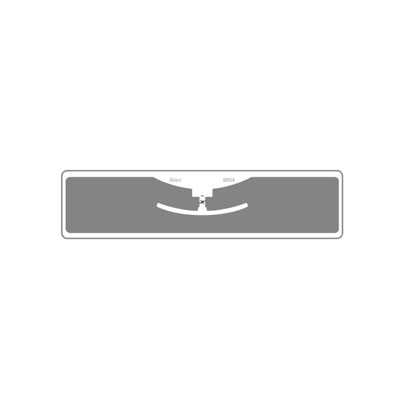

Powered by Alien’s break-through Higgs3 UHF RFID IC and innovative antenna design, the ALN-9654 is an ultra-high performance, general-purpose RFID inlay, which delivers industry-leading EPC Gen 2 performance and reliability. It is well-suited for high-dielectric materials such as windshields and reusable pallets or containers.
Exceptional performance
Designed to meet EPCglobal Gen2 (V1.2.0) and ISO/IEC 18000-6C
Worldwide RFID UHF operation (840-960MHz)
Higgs™-3 IC with 800-bits of Nonvolatile Memory
32-bit TID
64-bit Unique TID
96-bit EPC Memory, extensible to 480-bits
512-bit User Memory
32-bit Access password
32-bit Kill password
Pre-programmed with a unique, unalterable 64-bit serial number (ideal for authentication)
User Memory can be Block Perma-Locked
User Memory can be Read Password protected in 64-bit blocks, prohibiting unintended Reads without an access password
Supports all Mandatory and Optional Gen 2 commands including item level commands
Custom commands for high-speed programming

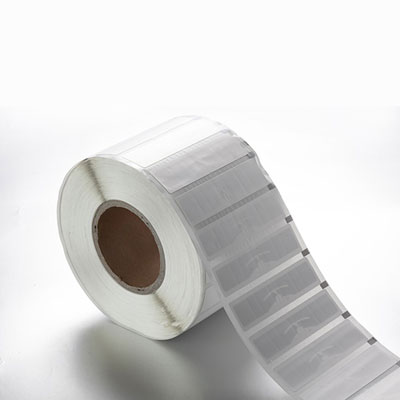

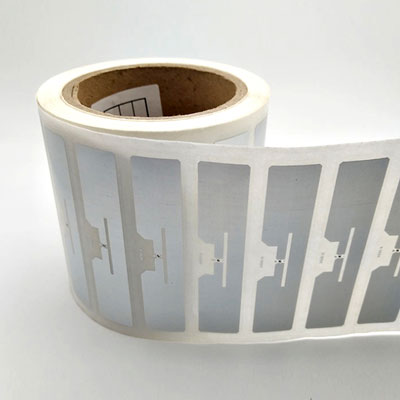

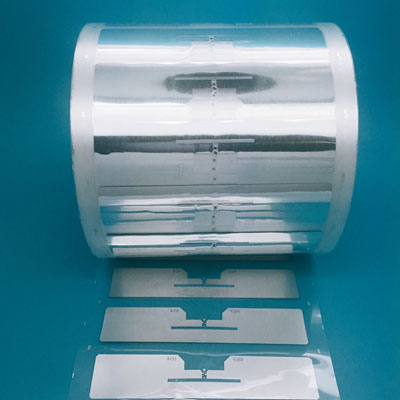

Available in high-yield, high-capacity dry/wet inlay rolls for high volume converting processes
| Protocols Supported | ISO/IEC 18000-6C EPCglobal Class 1 Gen 2 |
|---|---|
| Integrated Circuit | Alien Higgs-3 |
| EPCglobal Certificate | 950110126000001084 |
| Operating Frequency | 840–960 MHz |
| EPC Size | 96 - 480 Bits |
| User Memory | 512 Bits |
| TID | 32 Bits |
| Unique TID | 64 Bits |
| Access Password | 32 Bits |
| Kill Password | 32 Bits |
